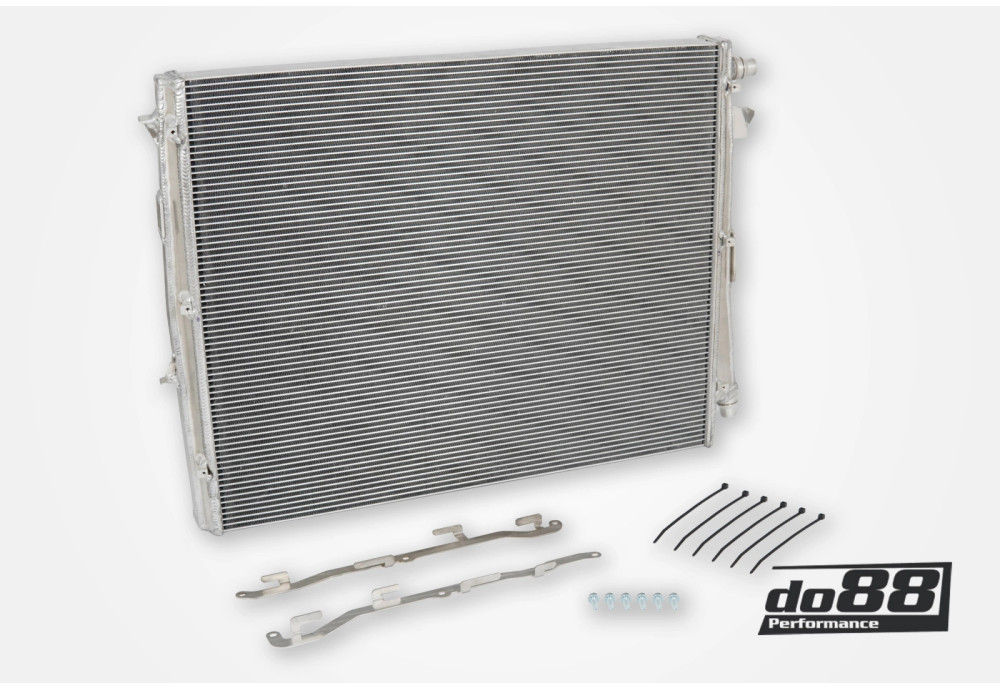

Radiator do88 For BMW 320i 330i 330iX G20 G21 Radiator do88 For BMW 320i 330i 330iX G20 G21

Enhance your B48 engine's performance with the do88 Performance Front Mount Heat Exchanger!

FITS MODEL:

- BMW 320i G20 G21 With Engine B48

- BMW 330i G20 G21 With Engine B48

- BMW 330iX G20 G21 With Engine B48

Challenges of the B48 Charge Air Cooling System

A common issue with tuned B48 engines is the rapid heat soaking of the charge air cooling system, particularly during track days. High intake air temperatures will make the ECU to reduce power output or put the car into limp mode. Even spirited street driving can prompt the ECU to pull timing and decrease power output due to high intake temperature.

do88 Solution

It is evident that this system needs increased cooling capacity to prevent heat soaking. Part of or solution is our do88 Performance Front mount heat exchanger. The do88 Performance Front Mount Heat Exchanger is designed to provide increased cooling capacity, preventing heat soaking.

It features:

• 80% larger core volume than the original radiator (OE).
• Dual-row core that is 48mm thick, increasing the cooling surface by 36%.
• Quad-pass layout, allowing water to pass through the radiator four times instead of two, maximizing core surface area utilization.
• Slightly higher 5mm ambient fin height (compared to the OE's 4.4mm), ensuring good airflow to the engine radiator despite the increased core thickness.

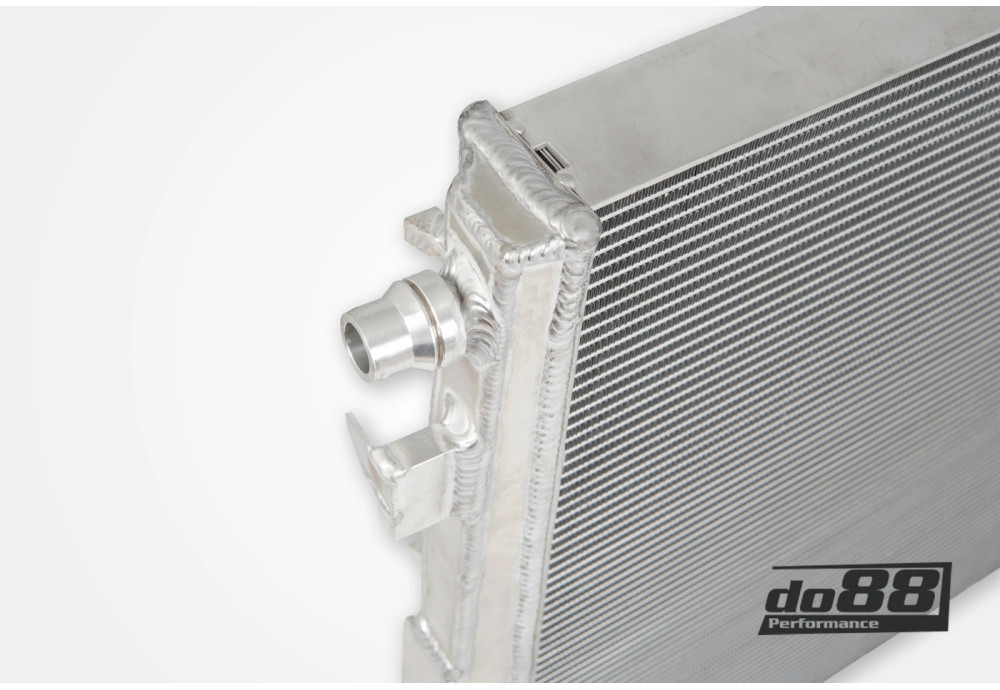

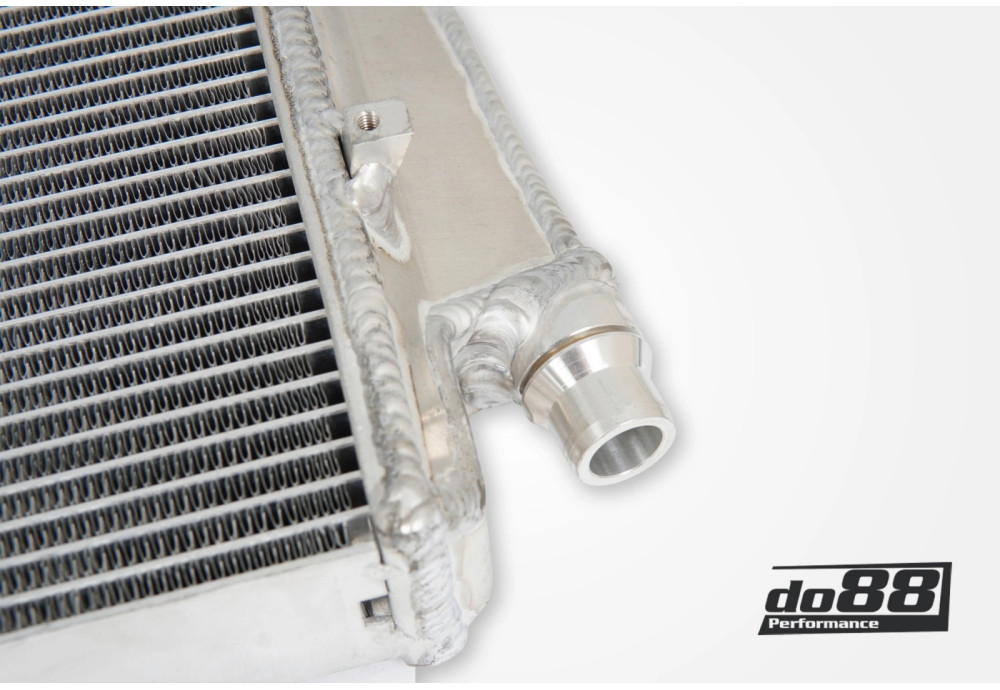

• Full aluminum construction, complete with durable TIG-welded end tanks.
• Increased fluid capacity (2,6 liter more) for optimal heat dissipation.

Installation

Our heat exchanger includes mounting points for the OE transmission cooler and both OE rock guards. Some trimming of the OE plastic radiator mounting frame is necessary to fit the larger do88 Performance Front Mount Heat Exchanger (see installation instruction).

Part number: WC-400

Radiator do88 For BMW 320i 330i 330iX G20 G21, 80% larger core volume than the original radiator (OE).
