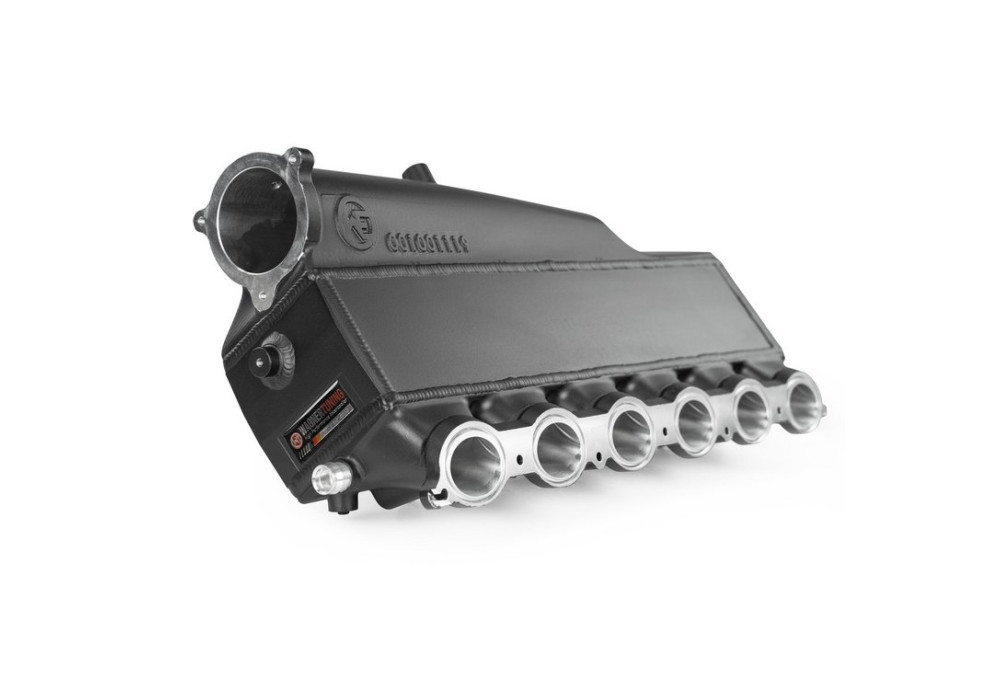

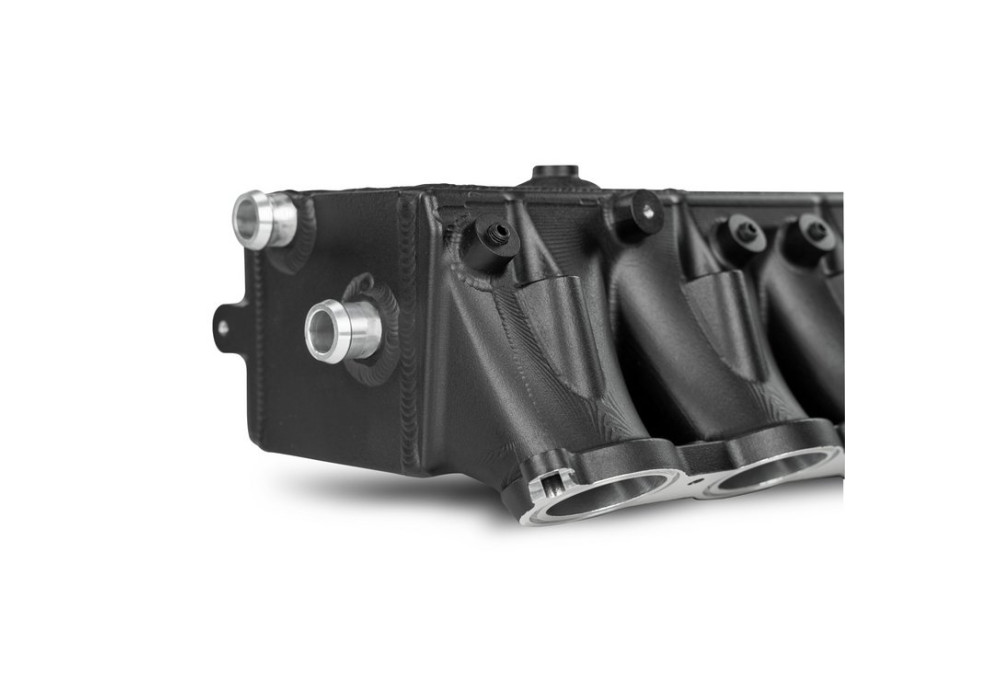

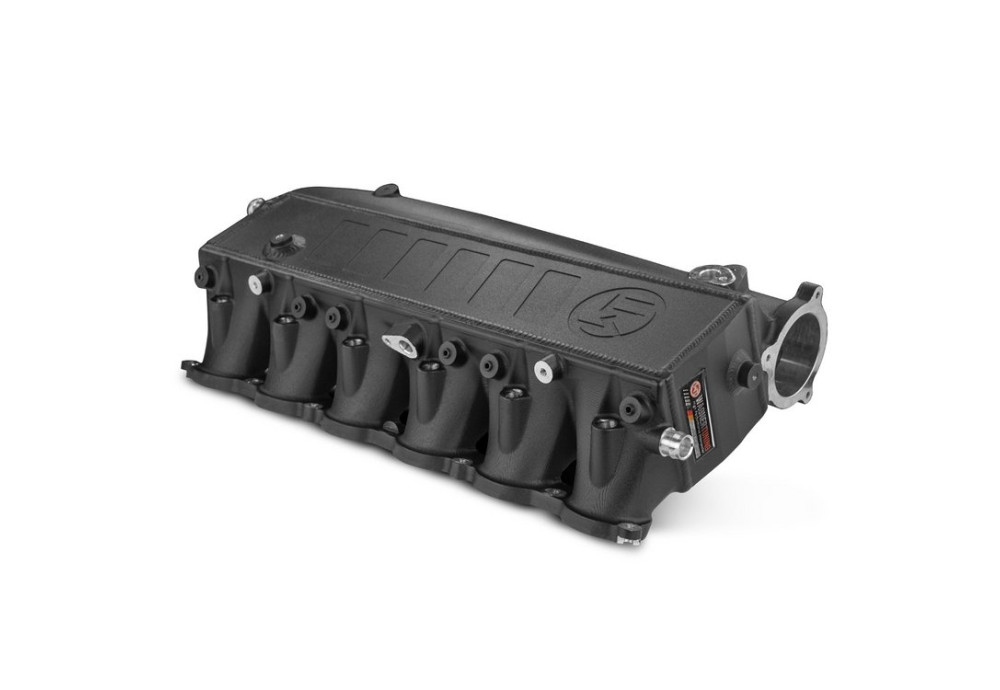

Intake Manifold With Integrated Intercooler EVO1 B58 Engine For BMW Z4 G29 M40i Intake Manifold With Integrated Intercooler EVO1 B58 Engine For BMW Z4 G29 M40i

Dive into a new dimension of performance and experience a powerful boost for your BMW Z4 G29 M40i 3.0 liter B58.2 turbo engine with our state-of-the-art intake manifold.

The integrated intercooler, which is placed directly in the intake manifold, enables an efficient cooling process of the charge air and thus ensures optimum performance.

The Wagner Tuning intake manifold with integrated intercooler was developed specifically for the high demands and tight spaces of the B58.2 engine. With its new type of performance intercooler core, it offers an impressive 128% larger external core volume compared to the original intercooler. The optimal ratio of internal to external cooling surface area maximizes heat transfer while ensuring the best possible internal airflow. The CNC machined from solid end boxes, optimized using CFD simulations, provide outstanding cooling characteristics with minimal back pressure. This kit is therefore also perfectly suited for racing and allows optimal cooling of the charged air with an impressive increase in performance.

This Wagner Tuning intake manifold is equipped with a heat-conducting anti-corrosion coating, which ensures a lasting cooling effect and optimally protects your engine. The installation of the system is uncomplicated thanks to our installation instructions and can be carried out Plug & Play without any problems.

Benefit from the advantages of this product:

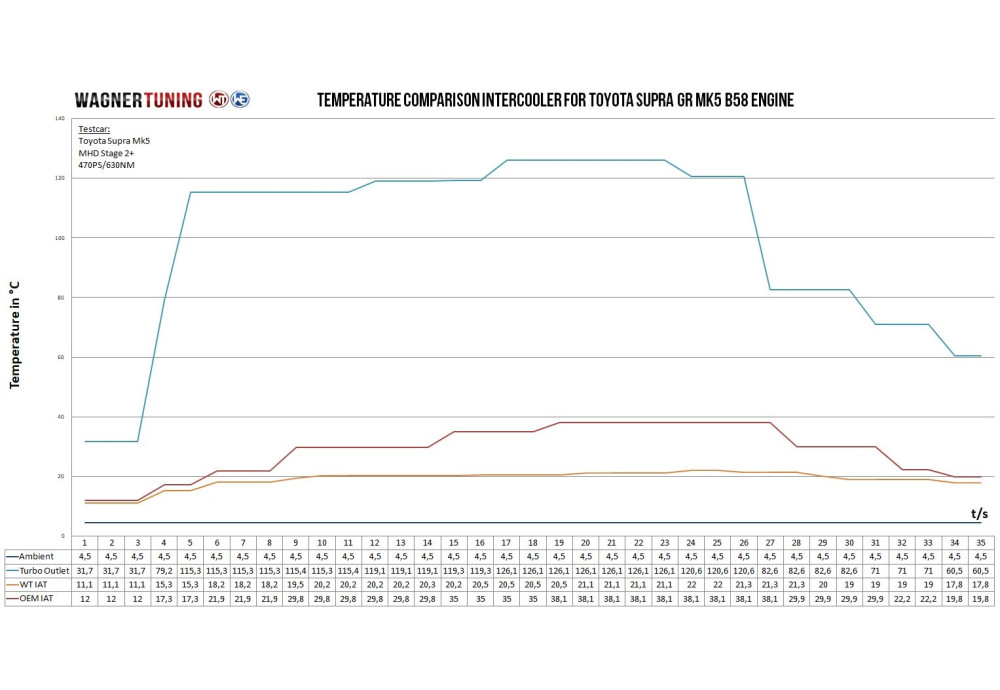

- A significantly improved cooling performance for up to 20° cooler intake air temperatures.

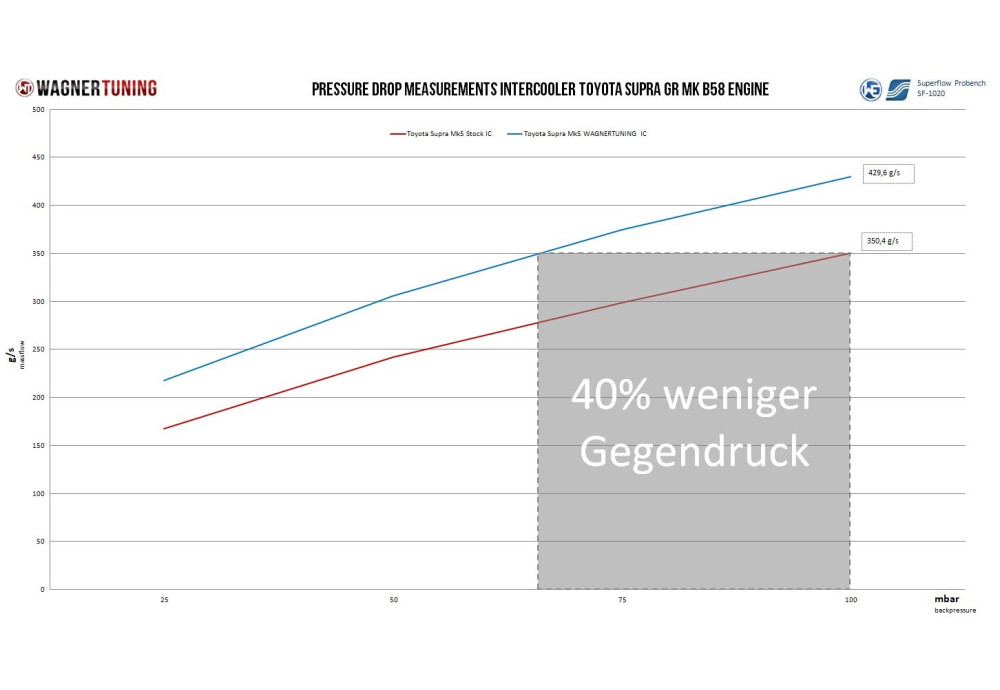

- Maximum mechanical and thermal relief of the turbocharger for longer engine life and 35% less backpressure.

- More power and torque for a breathtaking driving experience.

- 100% pressure resistance for reliable performance.

- Easy plug and play installation with no modifications.

- preprocessed port fuel injection (Fuel Rail optionally)

- Three 1/8 NPT ports for additional parameter measurement.

- six preprocessed NOS or WMI ports (for example 90° NOS Nozzles 1/16 NPT) (for example 90° NOS Nozzles 1/16 NPT)

- Suitable for all performance levels, from street to racing.

- Up to 4 years warranty for your complete satisfaction.

- Important information for the oil service: The oil filter can still be done without disassembling the intake manifold again

Experience the ultimate performance with our WAGNER TUNING intake manifold with integrated intercooler and bring your BMW Z4 to a new performance level!

Intake manifold with integrated Intercooler EVO1 fits the following models:

BMW Z4 G29 M40i

Core dimensions stock OEM intercooler:

152 mm x 143 mm x 100 mm

V = 2.19 liters

Core dimensions Wagner Tuning intercooler:

192 mm x 156 mm x 128 mm

V = 3,83 liters (+75%)

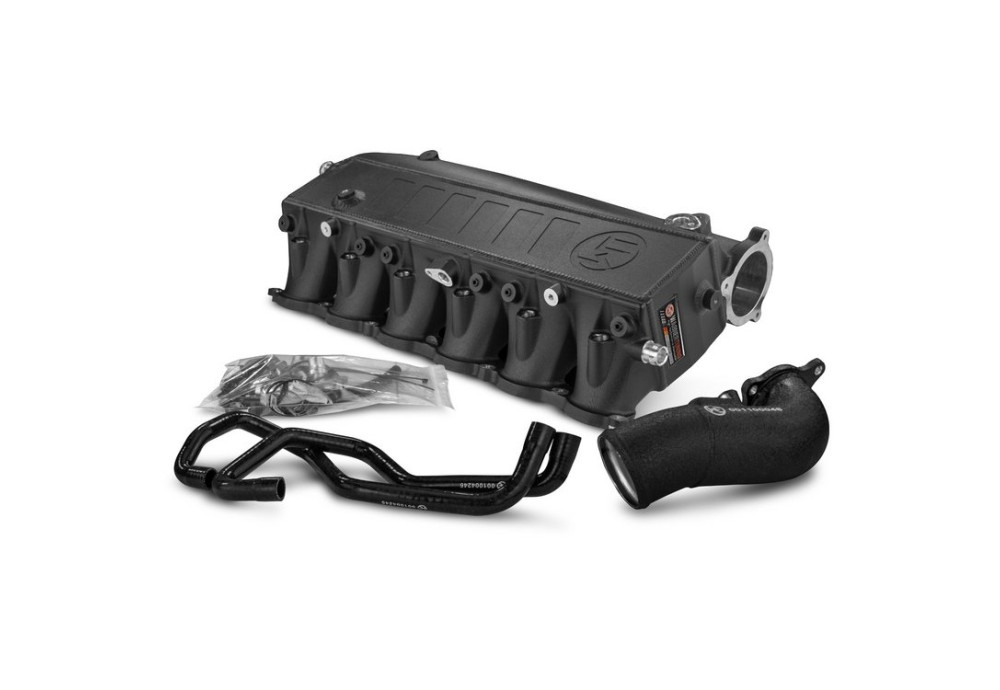

Kit comes with:

1 intercoolers

2 silicone hoses air

5 retaining plates

1 mounting material

1 installation instructions

Kit number: 200001175

Intake Manifold With Integrated Intercooler EVO1 B58 Engine For BMW Z4 G29 M40i, Maximum mechanical and thermal relief of the turbocharger for longer engine life and 35% less backpressure.
