Front Mounted Radiator S55 Engine For BMW M3 F80 Front Mounted Radiator S55 Engine For BMW M3 F80

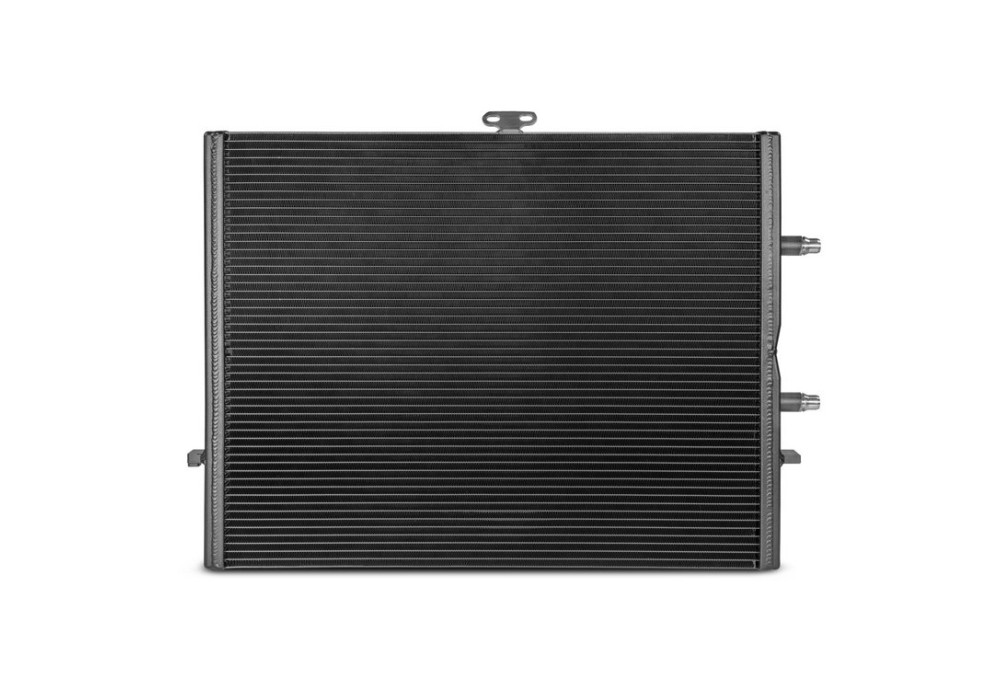

Front mounted Radiator for the BMW M3 F80 S55 Engine.

The 3.0 Liter S55B30 turbo engine for BMW M3 model is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit. A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the WAGNER TUNING upgrade water cooler comes into play.

The new developed competition racing cores of the WAGNER TUNING high performance water coolers increase the radiator volume of the OEM water coolers by 89% for front mounted. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange. The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).

Dimensions BMW OEM front mounted radiator:

590 mm x 308 mm x 25 mm / 23,2Inch x 12,1Inch x 1,0Inch

V = 4,5 Liter

A = 1817 cm² / 280,7Inch²

Dimensions WAGNER TUNING front mounted radiator:

568 mm x 468,4 mm x 32 mm / 22,4Inch x 18,4Inch x 1,26Inch

V = 8,5 Liter (+89%)

A = 2660,5 cm² / 412,2Inch² (+46,4%)

Kit comes with:

1x front mounted radiator (low-temperature circuit)

1x installation instruction

Kit number: 400001003.FM

Front Mounted Radiator S55 Engine For BMW M3 F80, The new developed competition racing cores of the WAGNER TUNING high performance water coolers increase the radiator volume of the OEM water coolers by 89% for front mounted.
