EVENTURI Carbon Intake System AUDI RS4 and RS5 B8

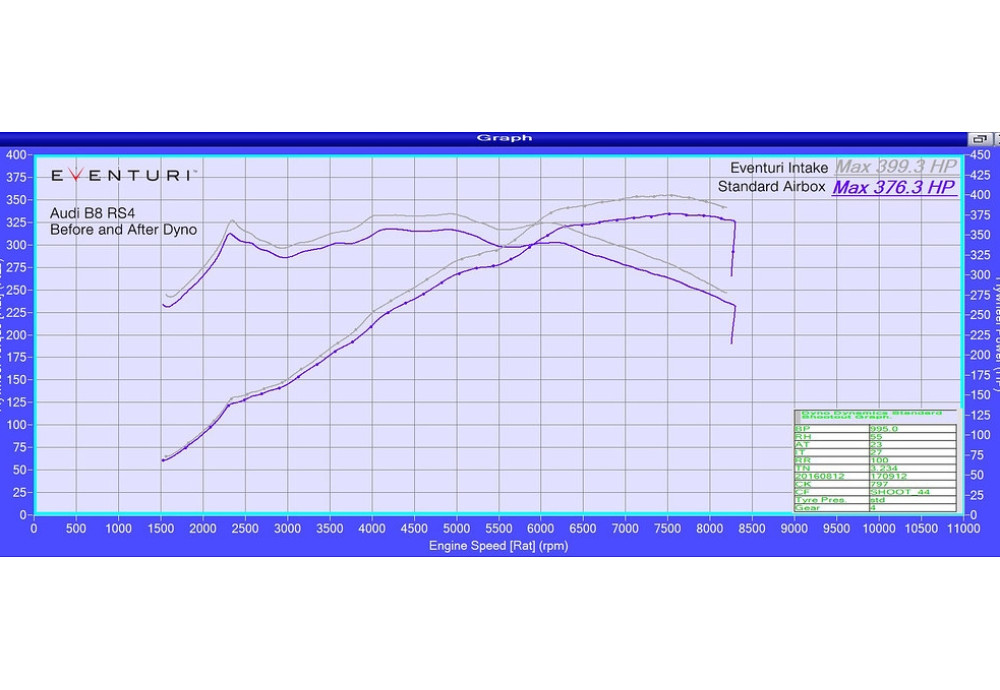

Performance Gain: 15-20hp, 12-18ft-lb (At The Wheels)
The Audi RS4/RS5 B8 Eventuri intake was developed after consultation and support from RS5 enthusiasts. We have completely re-engineered the inlet track from the ducts to the filters and the inlet tubes. The restrictive stock airboxes and duct feeds have been replaced with a highly efficient – fully sealed system with smooth transitions to allow the airflow to remain full and laminar. The resulting performance gains, sound and aesthetics are industry leading for this platform.
The Eventuri Difference
The RS4/RS5 Eventuri system uses our Patent Pending Carbon fibre Housings which provide an aerodynamically efficient airflow path from the filters to the throttle bodies. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.
The Eventuri RS4/RS5 B8 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards.

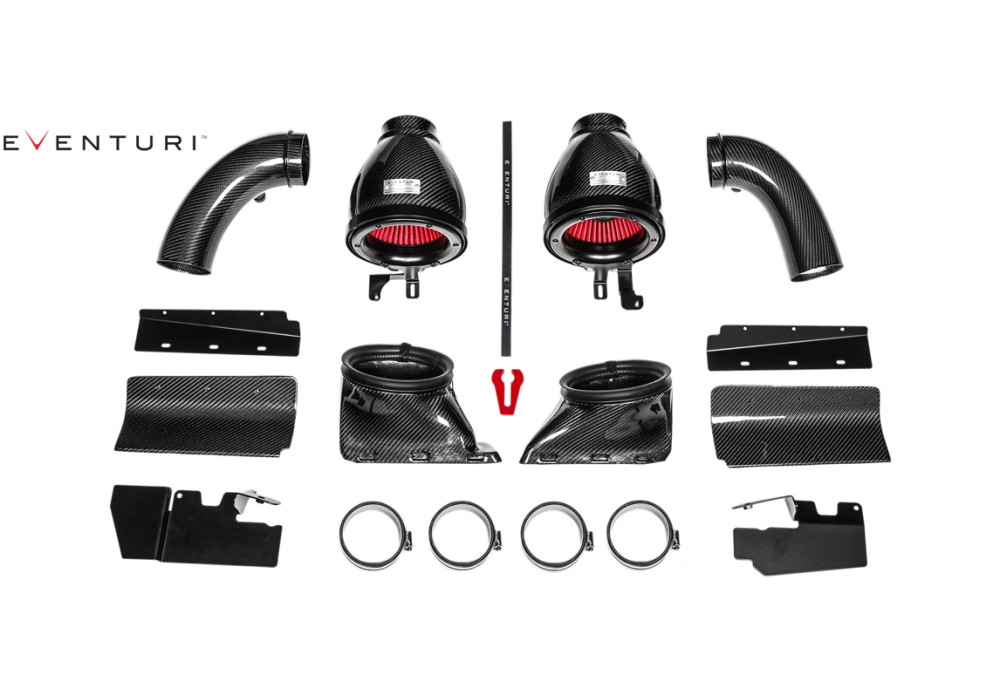

Each intake system consists of:

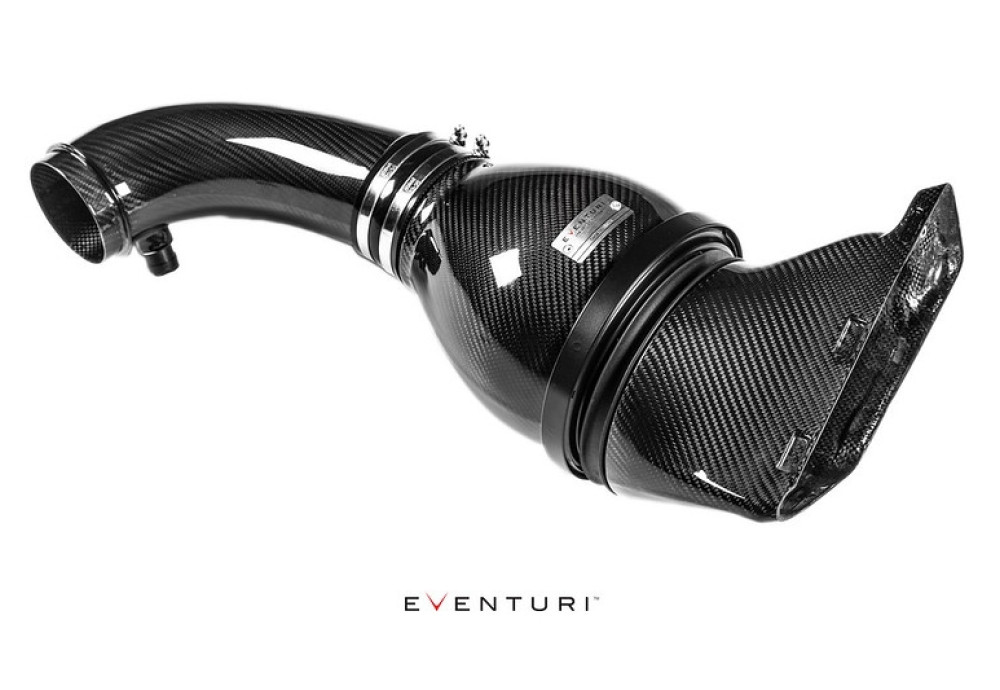

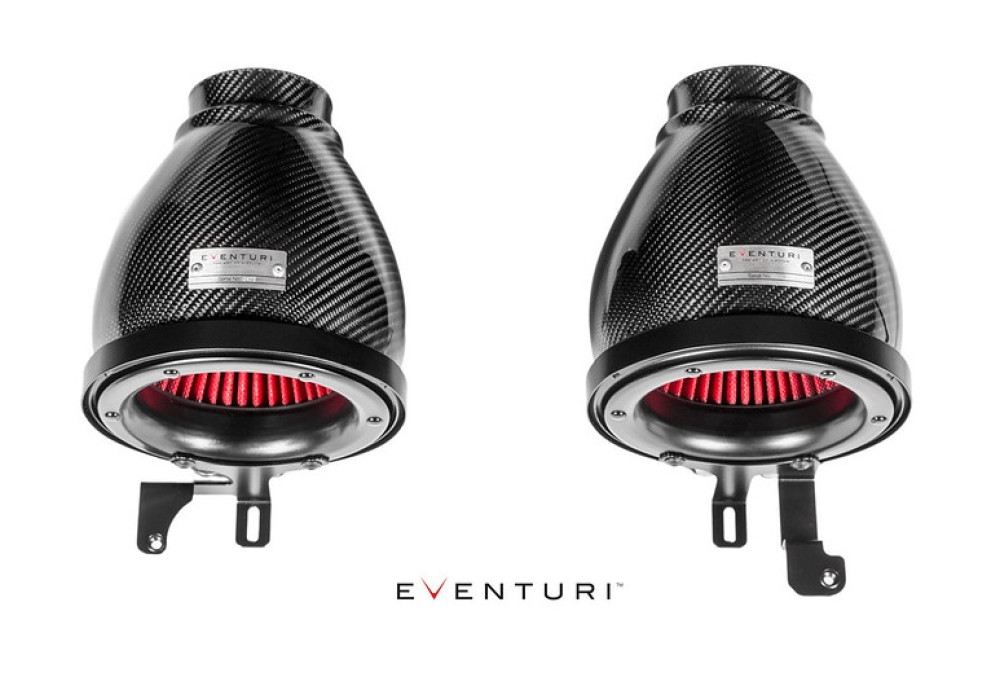

Carbon Intake Housing Assemblies

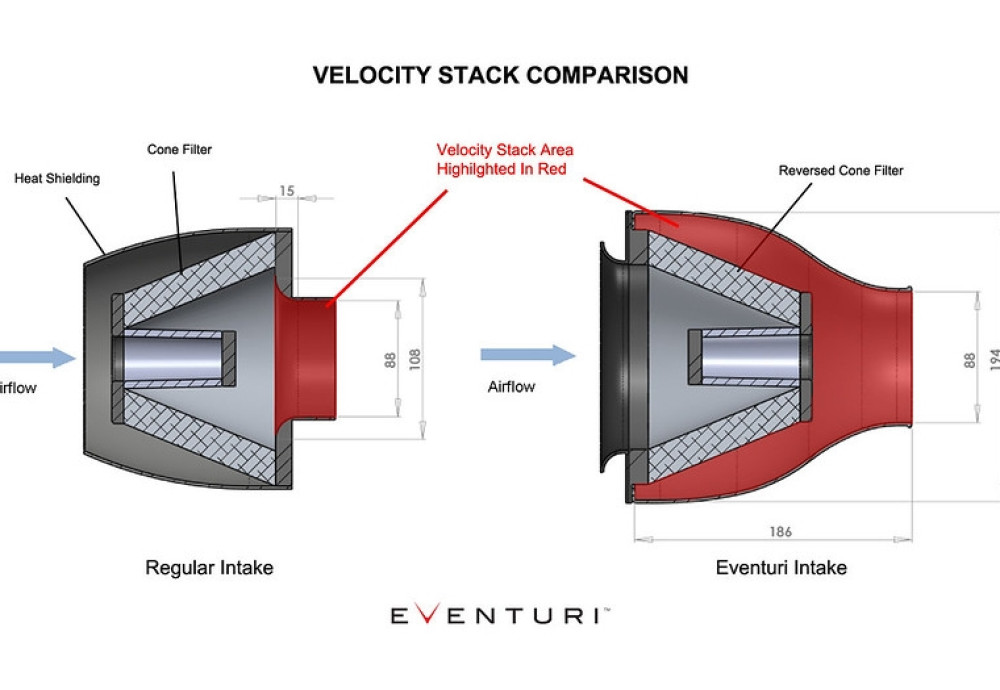

The filter housings comprise of the high flow filters, aluminium cowls, V-Band clamp, laser cut brackets and the carbon pods themselves. The carbon pods shroud the reverse mounted filter and smoothly shape the airflow down to the intake tubes. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patent pending design and a regular intake system. Further details can be read in the Technology page.

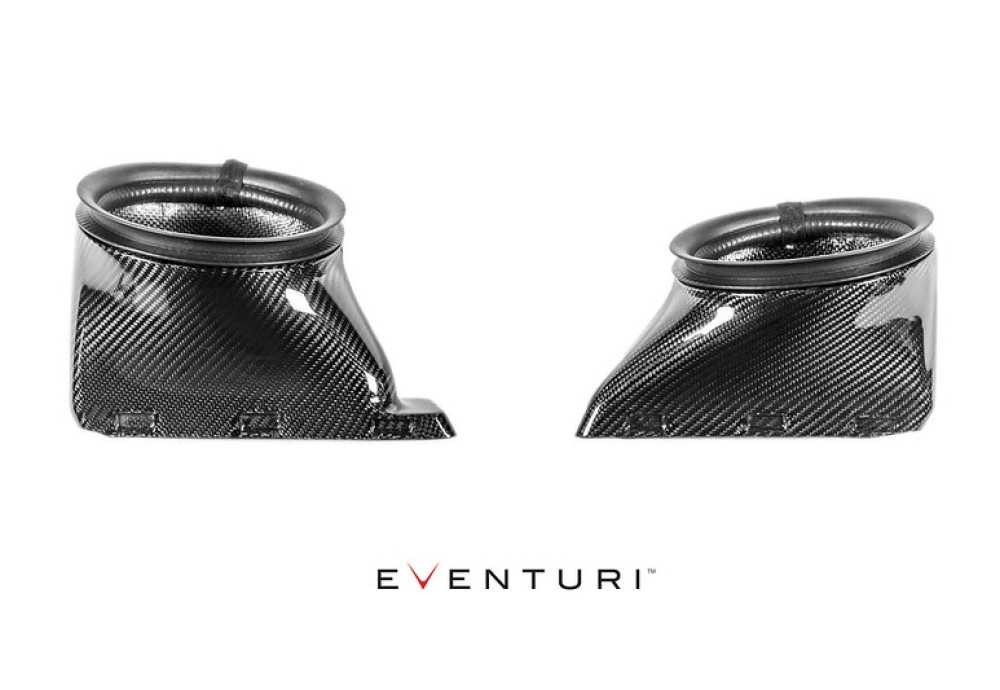

Carbon Fibre Intake Ducts
The ducts channel ambient air from the scoops to the filter housings. They fit inside the OEM ducting system and smoothly transition to the circular filter housing shape. In order to ensure a good seal against engine bay heat - the ducts also have a flexible rubber edging around the openings which press against the filter housings creating the desired seal yet allowing the housings to move with the engine. These geometrically complex pieces are a key part of our B8 design.

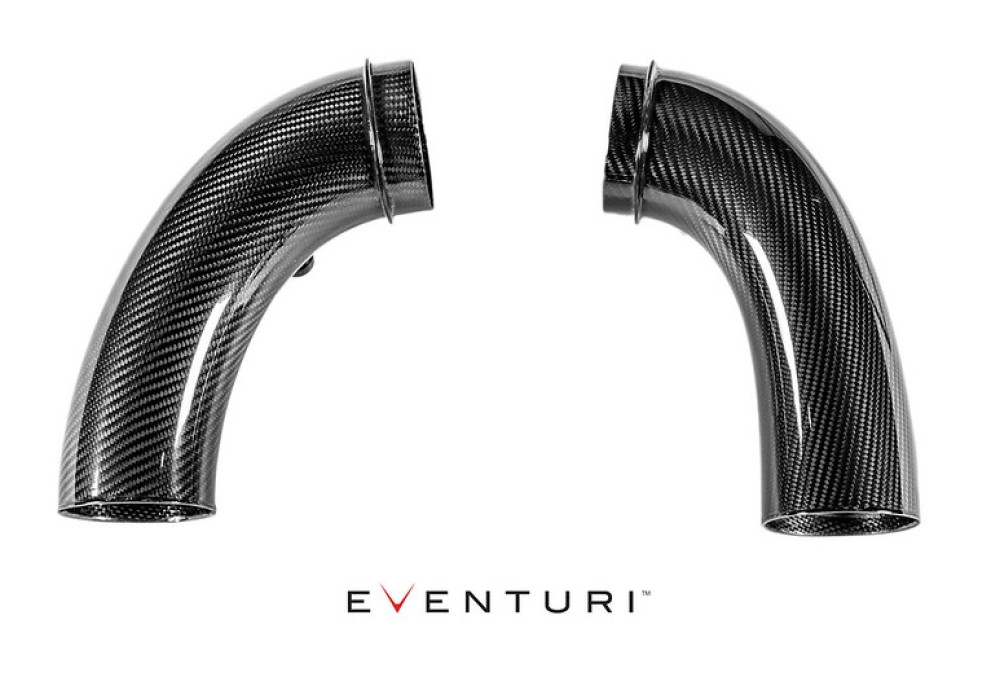

Carbon Fibre Intake Tubes
Our intake tubes are again crafted from 100% prepreg carbon fibre. Each tube has an integrated breather tube insert which is CNC machined from aluminium. The tubes smoothly carry the airflow to the throttle bodies by ensuring there are no sharp or sudden bends. The smooth bend geometry ensure laminar flow is maintained from the filters to the exits.

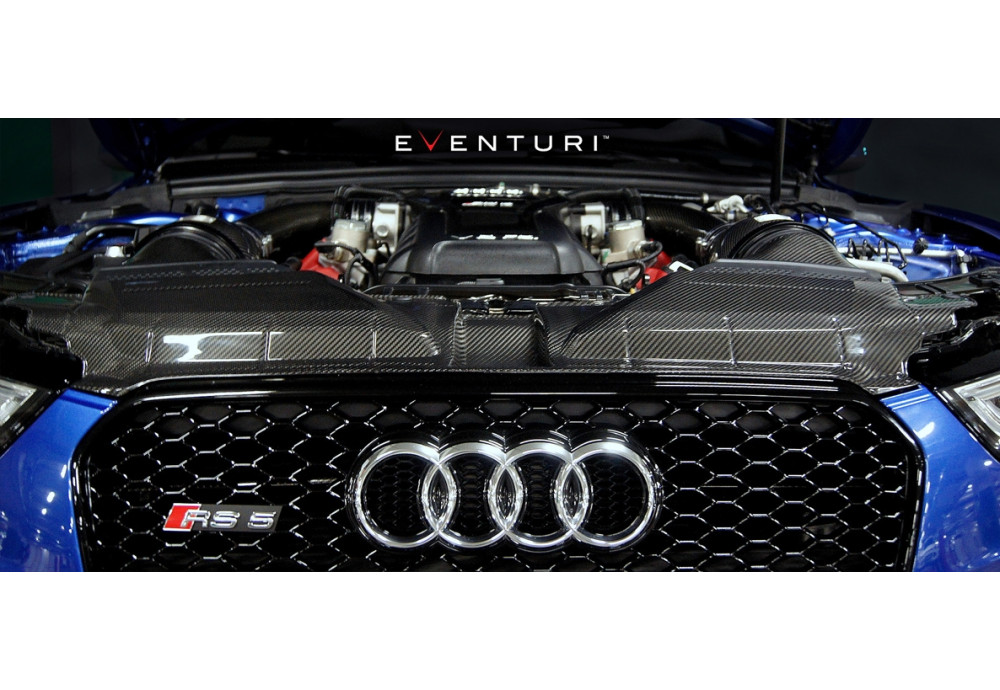

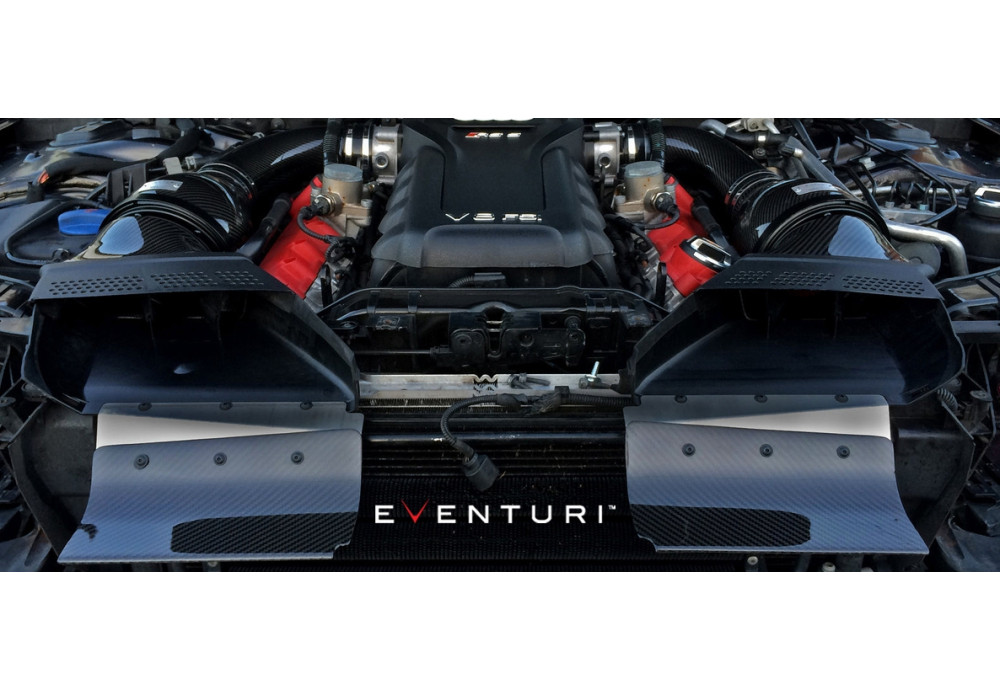

Carbon Fibre Air Scoops
The final carbon components in this system are the front scoops - essential to direct ambient air to the ducts and then to the filters.
The scoops were designed with a constant bend radius for maximum efficiency in directing the incoming air to the duct openings. They allow the inlet air temperatures to be as low as possible and increase the rate of drop in IATs after the system is heat soaked during a standstill.

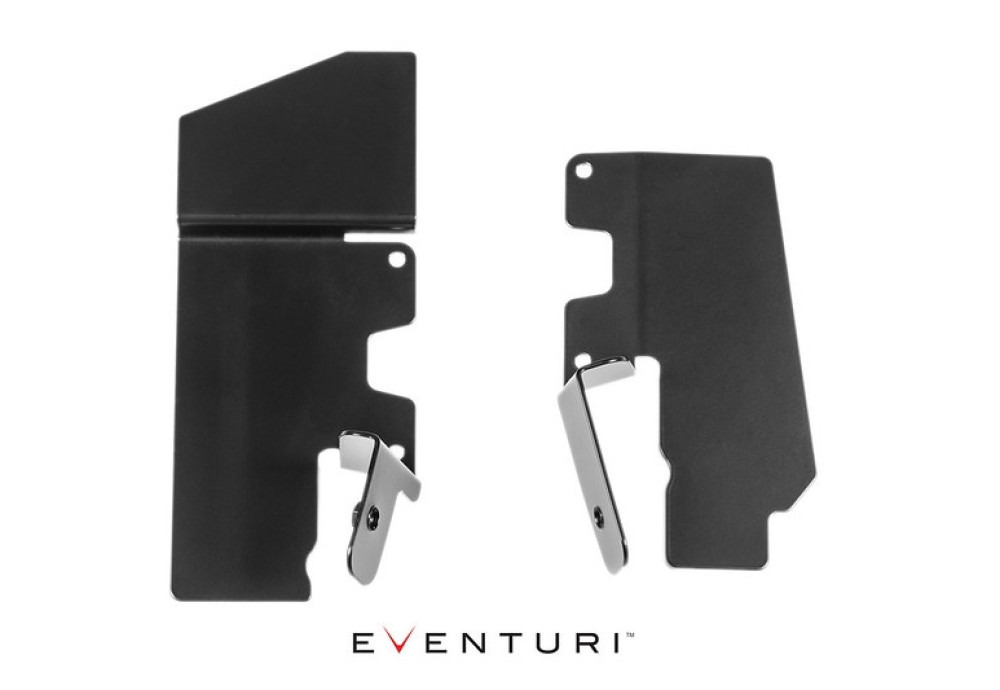

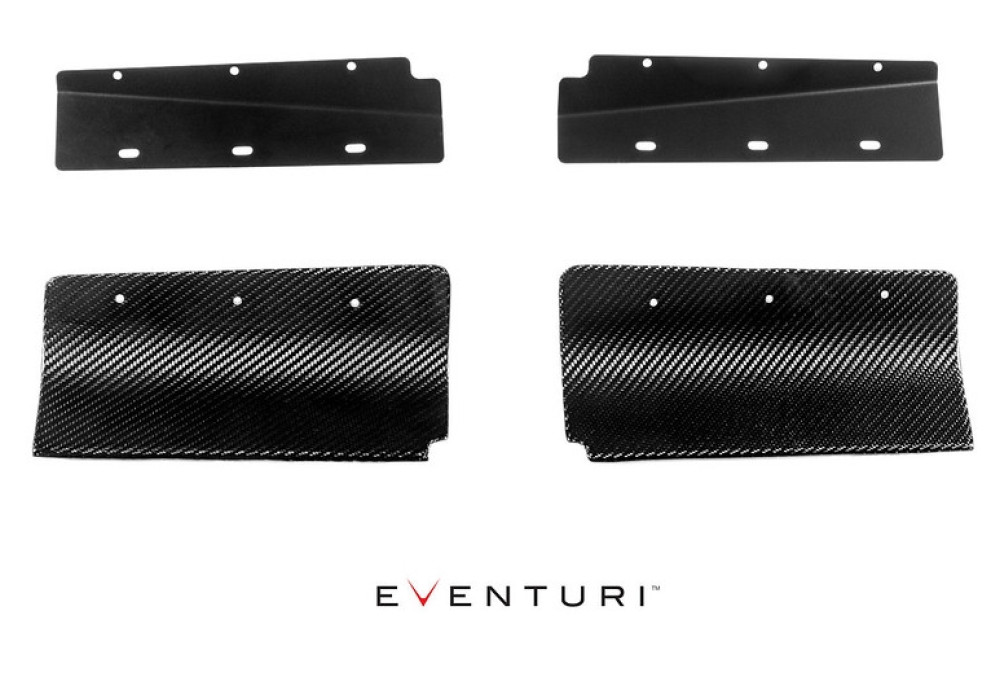

Heat Shields
The heat shields serve two purposes - to deflect heat from the exhaust manifolds and to provide a mounting surface for the housings. Laser cut from stainless steel, the shields provide a strong mounting point to secure the housings to. Furthermore, by using a class leading reflective material on the reverse face, the shields effectively block radiant heat generated by the exhaust manifolds thus reducing the heat soak onto the carbon components.

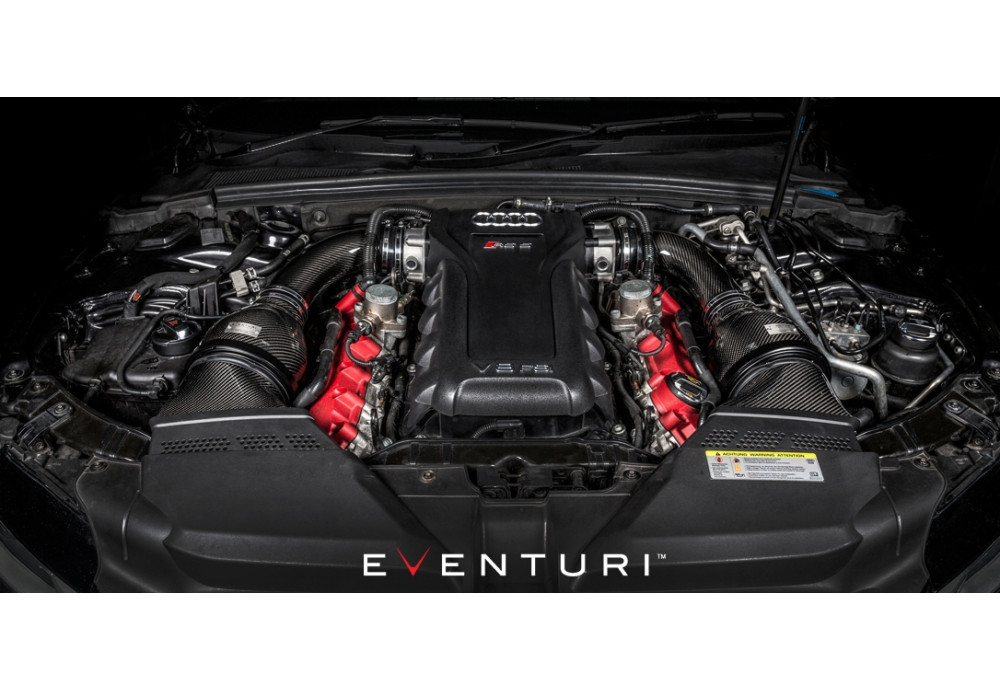

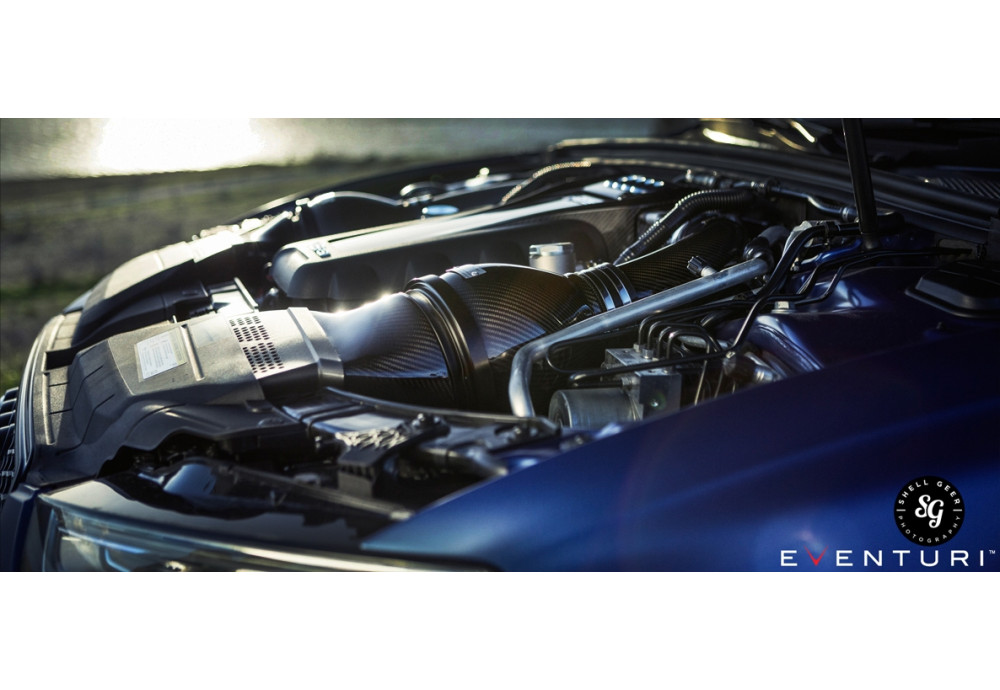

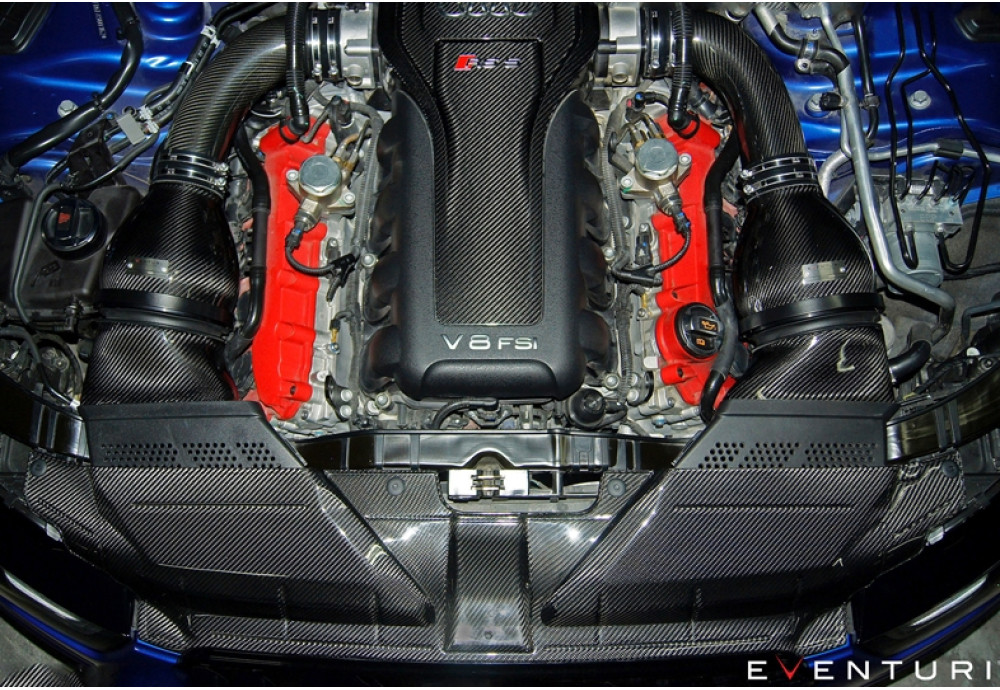

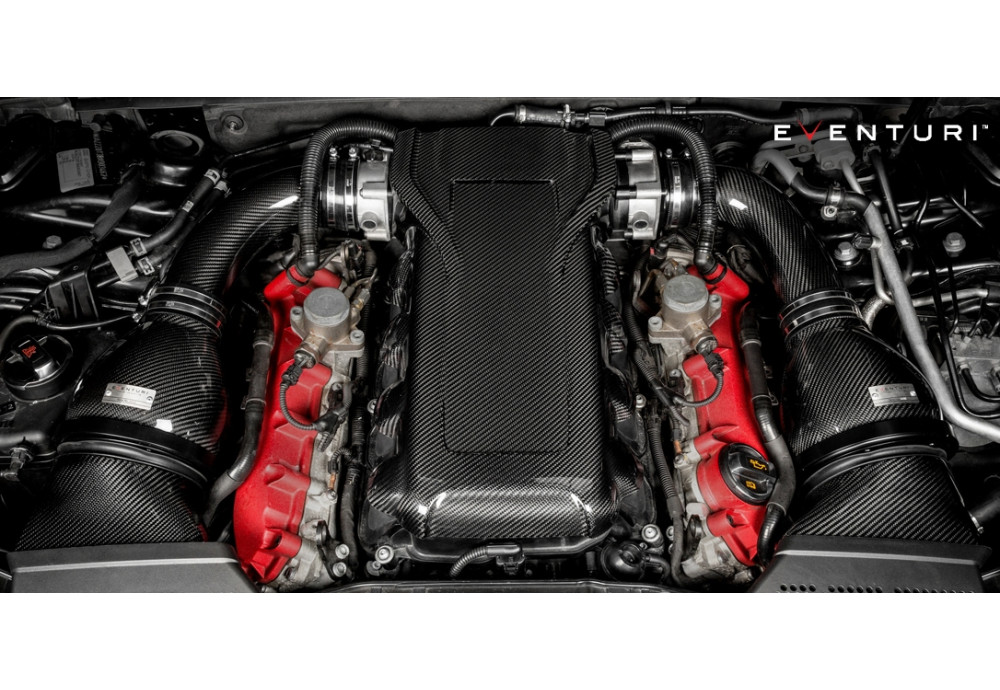

All the components come together in the engine bay to produce a genuine improvement in the driving experience as well as providing an incredible visual display of form and function in complete harmony. To add the finishing touches to the engine bay we have also produced matching carbon engine covers and slam panel covers.
Part number: EVE-RS5-INT
EVENTURI Carbon Intake System AUDI RS4 and RS5 B8
Performance Gain: 15-20hp, 12-18ft-lb (At The Wheels)
The Audi RS4/RS5 B8 Eventuri intake was developed after consultation and support from RS5 enthusiasts. We have completely re-engineered the inlet track from the ducts to the filters and the inlet tubes. The restrictive stock airboxes and duct feeds have been replaced with a highly efficient – fully sealed system with smooth transitions to allow the airflow to remain full and laminar. The resulting performance gains, sound and aesthetics are industry leading for this platform.
The Eventuri Difference
The RS4/RS5 Eventuri system uses our Patent Pending Carbon fibre Housings which provide an aerodynamically efficient airflow path from the filters to the throttle bodies. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.
The Eventuri RS4/RS5 B8 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards.
Each intake system consists of:
Carbon Intake Housing Assemblies
The filter housings comprise of the high flow filters, aluminium cowls, V-Band clamp, laser cut brackets and the carbon pods themselves. The carbon pods shroud the reverse mounted filter and smoothly shape the airflow down to the intake tubes. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patent pending design and a regular intake system. Further details can be read in the Technology page.
Carbon Fibre Intake Ducts
The ducts channel ambient air from the scoops to the filter housings. They fit inside the OEM ducting system and smoothly transition to the circular filter housing shape. In order to ensure a good seal against engine bay heat - the ducts also have a flexible rubber edging around the openings which press against the filter housings creating the desired seal yet allowing the housings to move with the engine. These geometrically complex pieces are a key part of our B8 design.
Carbon Fibre Intake Tubes
Our intake tubes are again crafted from 100% prepreg carbon fibre. Each tube has an integrated breather tube insert which is CNC machined from aluminium. The tubes smoothly carry the airflow to the throttle bodies by ensuring there are no sharp or sudden bends. The smooth bend geometry ensure laminar flow is maintained from the filters to the exits.
Carbon Fibre Air Scoops
The final carbon components in this system are the front scoops - essential to direct ambient air to the ducts and then to the filters.
The scoops were designed with a constant bend radius for maximum efficiency in directing the incoming air to the duct openings. They allow the inlet air temperatures to be as low as possible and increase the rate of drop in IATs after the system is heat soaked during a standstill.
Heat Shields
The heat shields serve two purposes - to deflect heat from the exhaust manifolds and to provide a mounting surface for the housings. Laser cut from stainless steel, the shields provide a strong mounting point to secure the housings to. Furthermore, by using a class leading reflective material on the reverse face, the shields effectively block radiant heat generated by the exhaust manifolds thus reducing the heat soak onto the carbon components.
All the components come together in the engine bay to produce a genuine improvement in the driving experience as well as providing an incredible visual display of form and function in complete harmony. To add the finishing touches to the engine bay we have also produced matching carbon engine covers and slam panel covers.
Part number: EVE-RS5-INT
EVENTURI Carbon Intake System For Audi RS4 RS5 B8
| Tuning Equipment | |
| Brand | EVENTURI |
| Car |
Audi RS4 (B8) (2012-2016) 4,2FSi Audi RS5 (8T/8F) (2010-2016) 4,2FSi (CFSA) |
| Type of equipment | Air intake systems |
Eventuri was founded by a team of engineers and enthusiasts with a background in Aeronautics and tuning – all sharing a passion for cars and performance. After owning various intakes over many years for our own cars and being disappointed with the gains which seldom lived up to their claims – we decided to take things into our own hands and rewrite the book. Eventuri set a new benchmark in intake design and technology, above all – to engineer systems which provide real gains and then to publish genuine figures.
Eventuri intake systems are extensively developed using cutting edge design, testing and prototyping methods. With a focus on performance, each design undergoes CFD analysis and is then validated at the prototype stage through volumetric airflow, intake temperature and extensive dynamometer testing. Eventuri strive to publish all the development information to illustrate the depths we go to in bringing an intake from concept to reality.
Only the best materials are selected for each component – even down to the choice of fasteners and fixings in order to ensure that the quality of the end product is second to none.
Eventuri intake systems for Audi, BMW, MERCEDES, Porsche
Tags: EVENTURI, Audi RS4 RS5 B8
