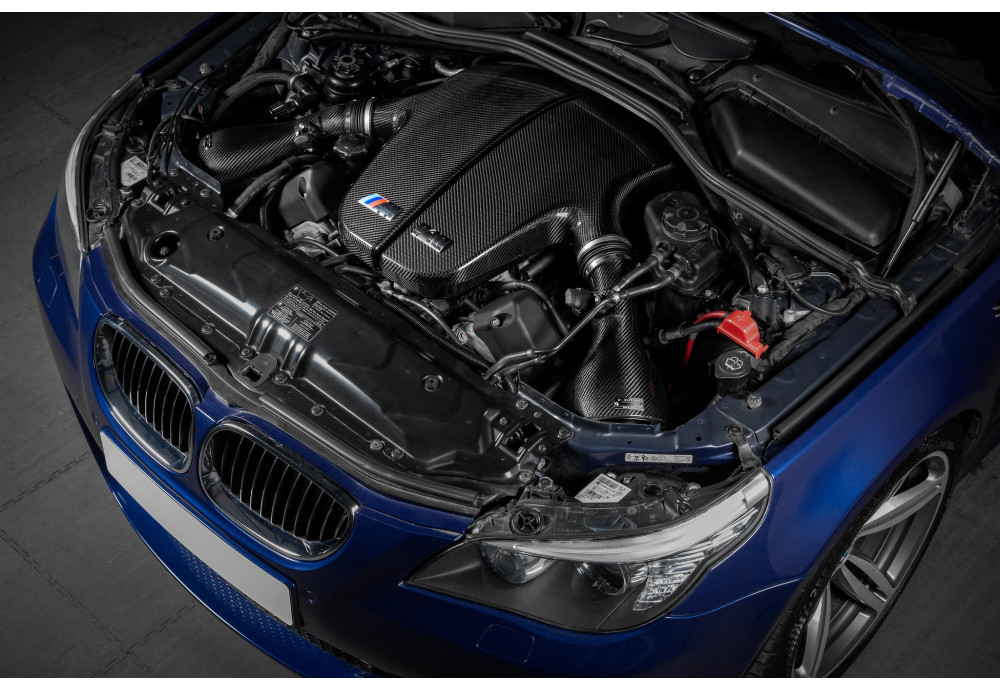

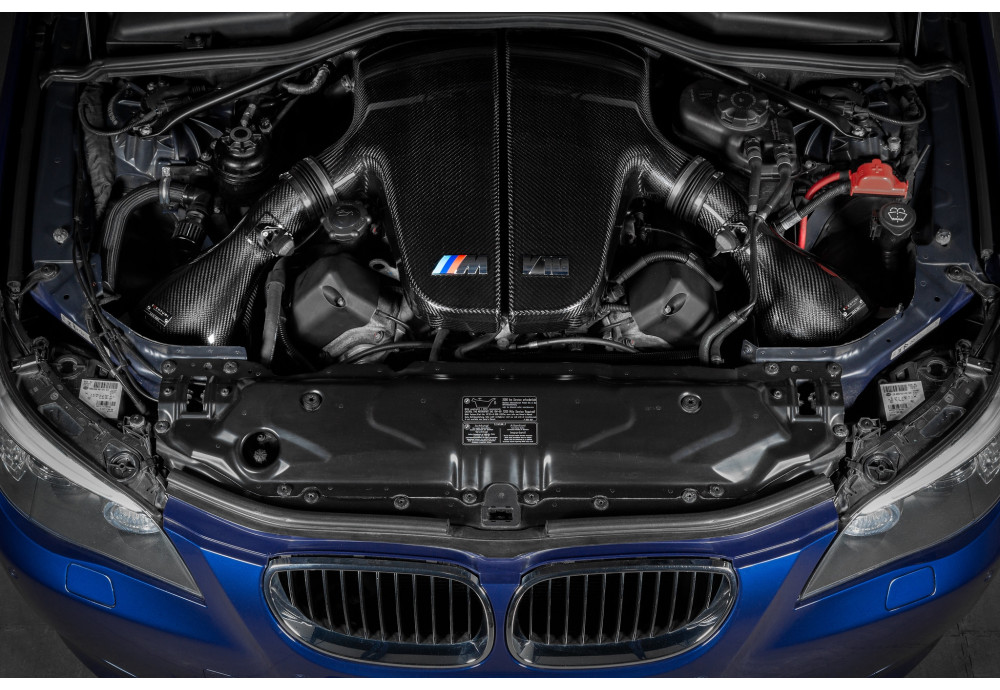

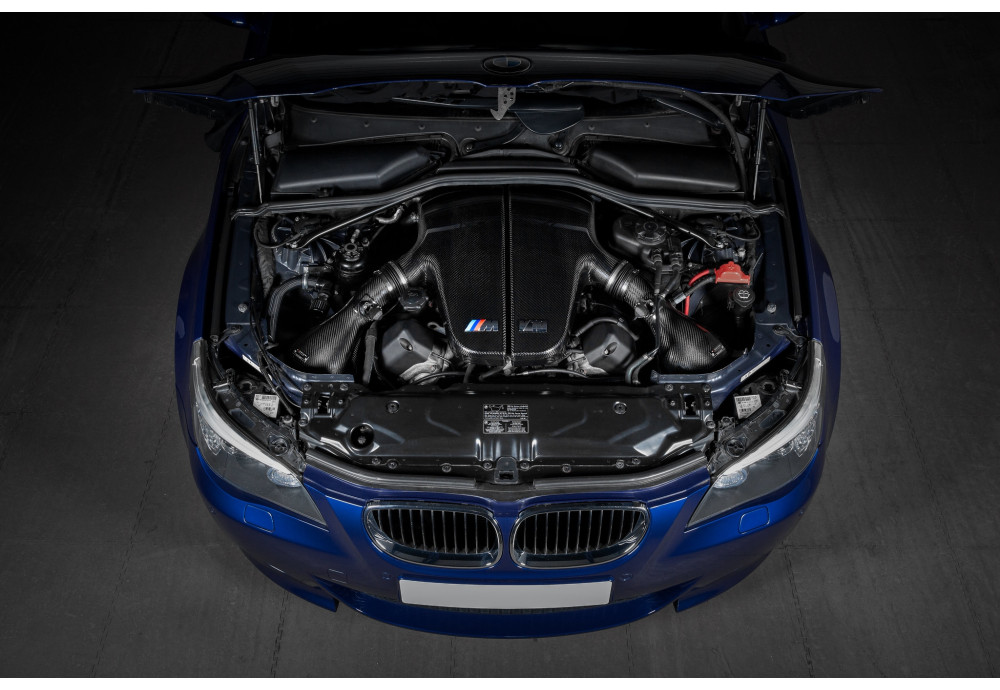

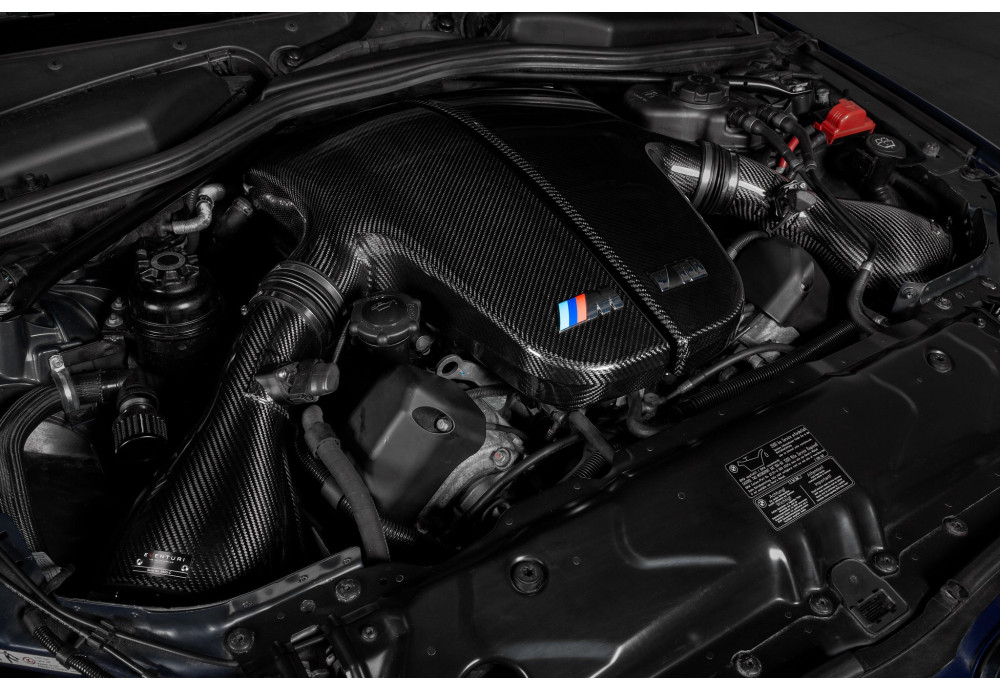

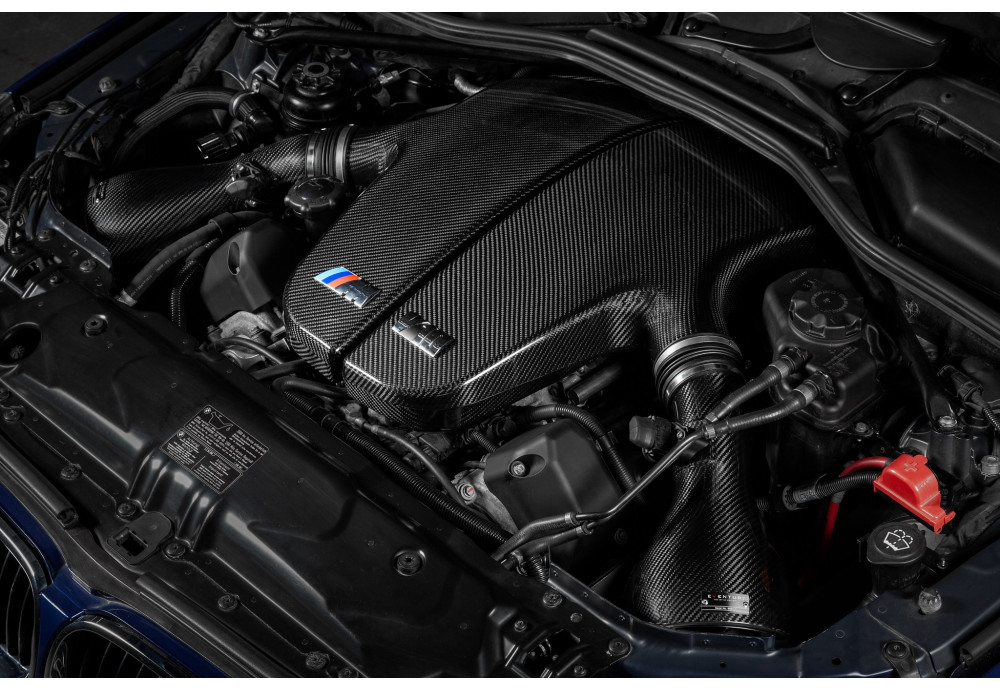

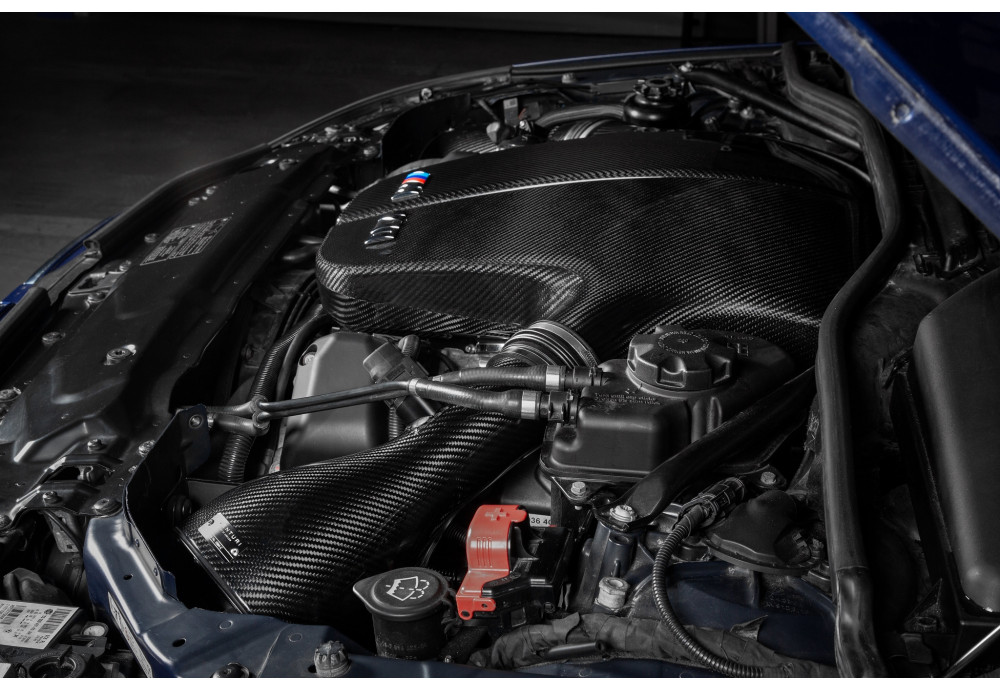

EVENTURI Carbon Air Intake System For BMW M5 E60 E61.
Performance Gain: 12-15hp, 12-18ft-lb
*Some images show our Carbon Plenum available separately.
Our updated M5 E60 E61 intake system retains the performance gains of our original system and benefits from the experience we have gained over the years to accomplish a more integrated design. By integrating the MAF tube into the carbon housing and replacing the OEM flexible hoses with our custom made shorter versions, the system now has a seamless aesthetic. This intake is designed to make a positive impact to the whole driving experience. By taking advantage of aerodynamic principles and using computational fluid dynamics to optimise the airflow, we have engineered an intake system which delivers on all fronts – sharpened throttle response, more torque and power, improving drive-ability and of course, an intoxicating V10 induction sound.
The Eventuri Difference
The S85 Eventuri system uses our Patent Pending Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.
COMPONENTS

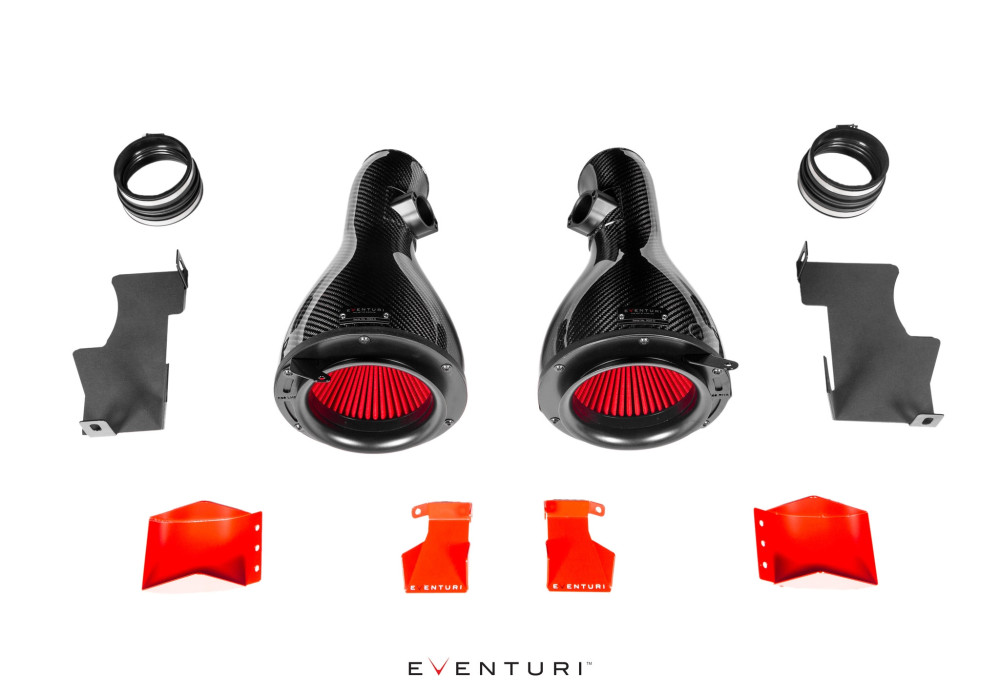

The M5 E60 E61 Intake system contains a comprehensive number of high quality components including:

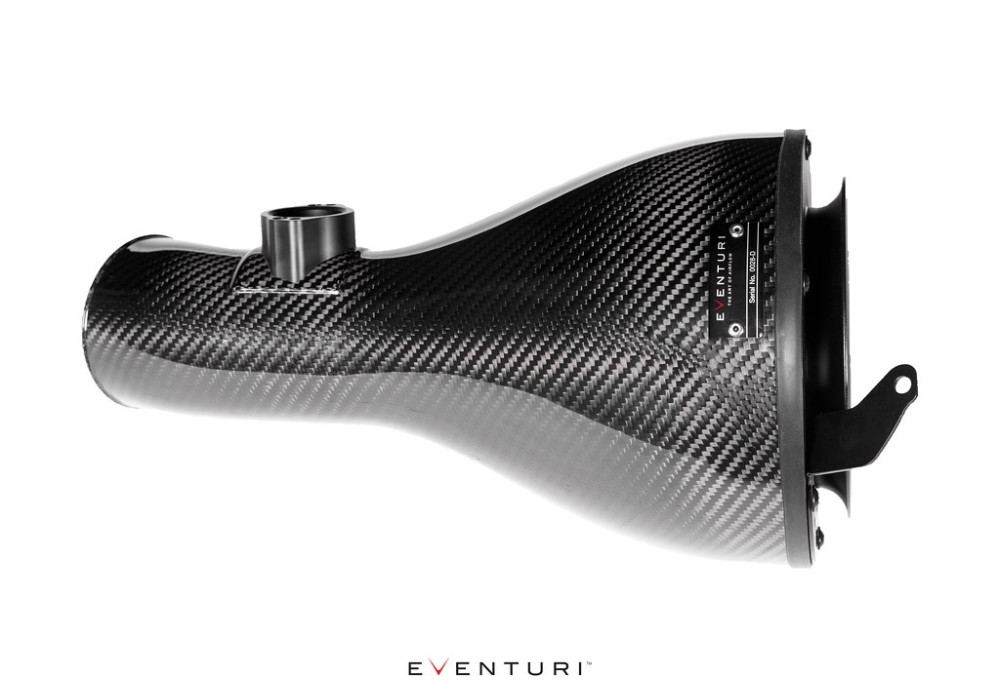

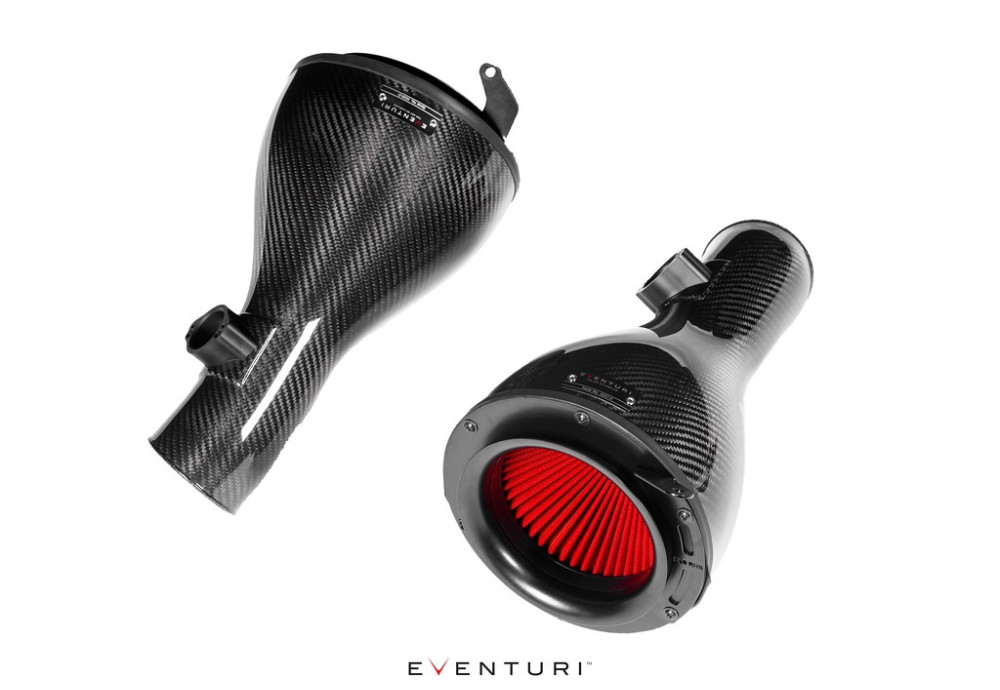

PATENTED FILTER HOUSINGS

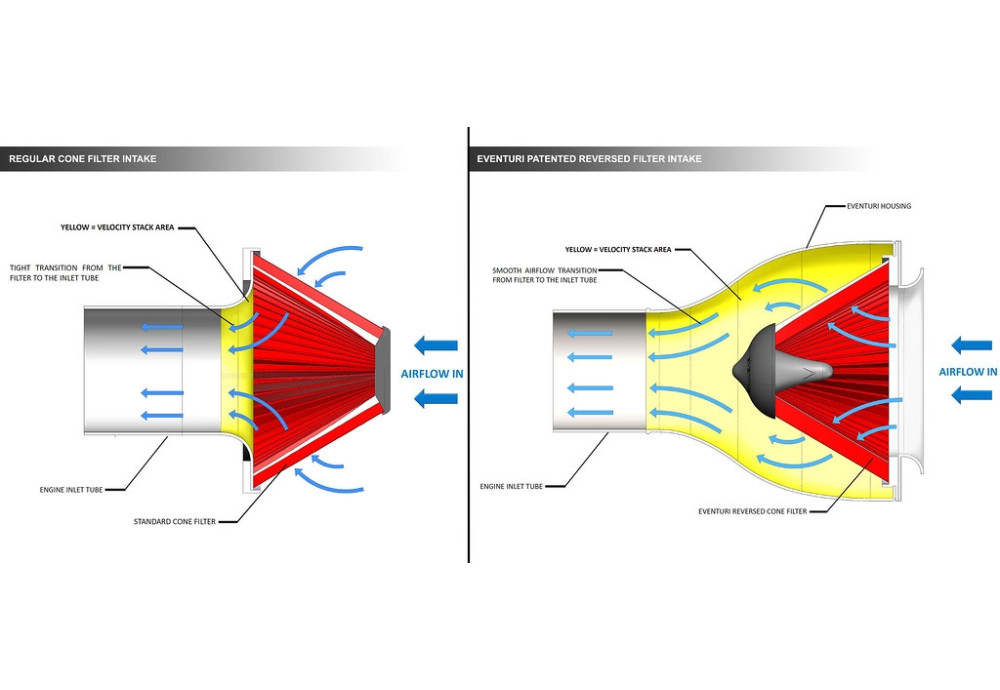

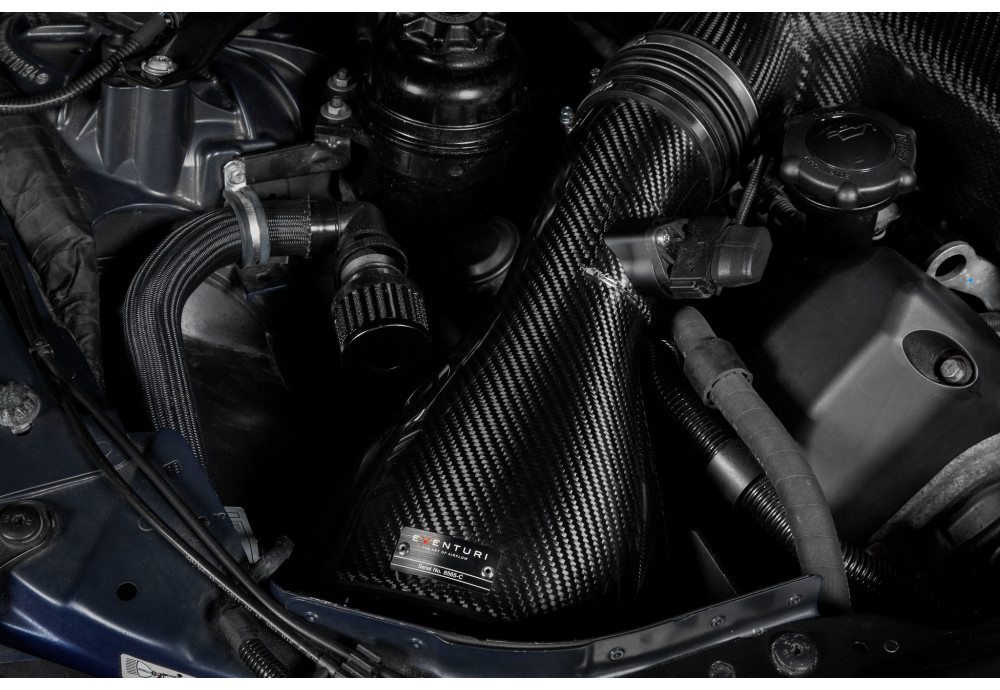

The M5 E60 E61 V2 Filter Housings utilise our patented Venturi technology and at the same time incorporates the MAF tube section for a seamless flow path. The carbon housing shrouds the reverse mounted filters and smoothly shapes the airflow towards the MAF tubes where volume is gradually reduced. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patented design and a regular intake system. Further details can be read in the Technology page.
BESPOKE CONE FILTER

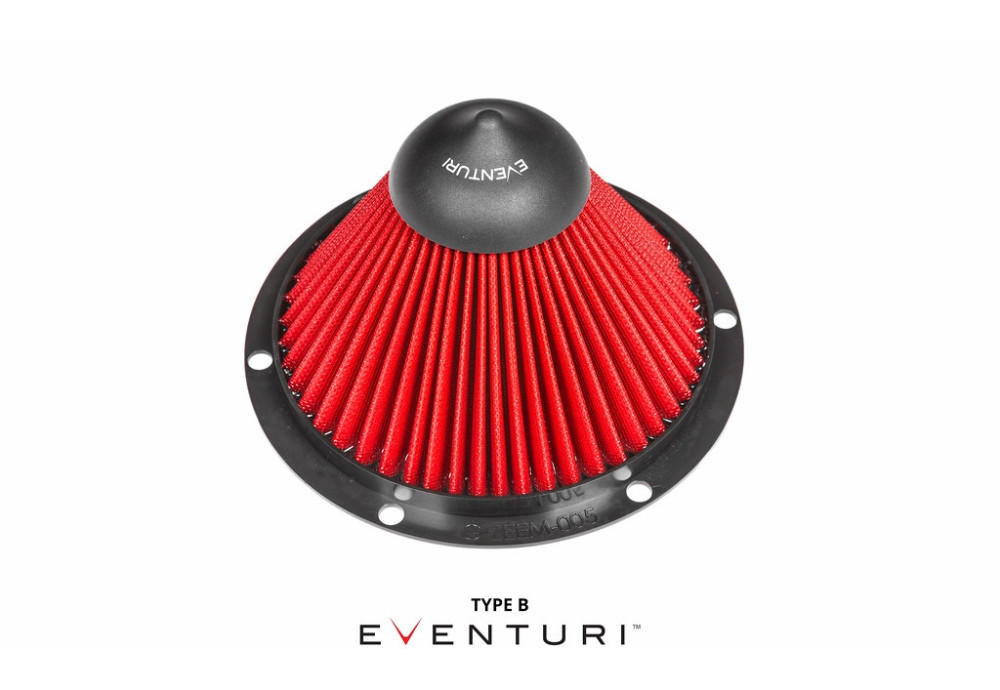

The filter we chose for the M5 E60 E61 system allows for a balance between filtration area and overall filter housing volume. By using a shorter cone we were able to optimise the shape of the housing for better flow towards the MAF tubes while maintaining more than sufficient filtration area for the CFM demands. The filter medium is ISO tested to ensure that filtration is in line with OEM standards and is also dry. The filter is constructed with our signature flow cones to aid in the Venturi housing principle.
EPDM COUPLERS

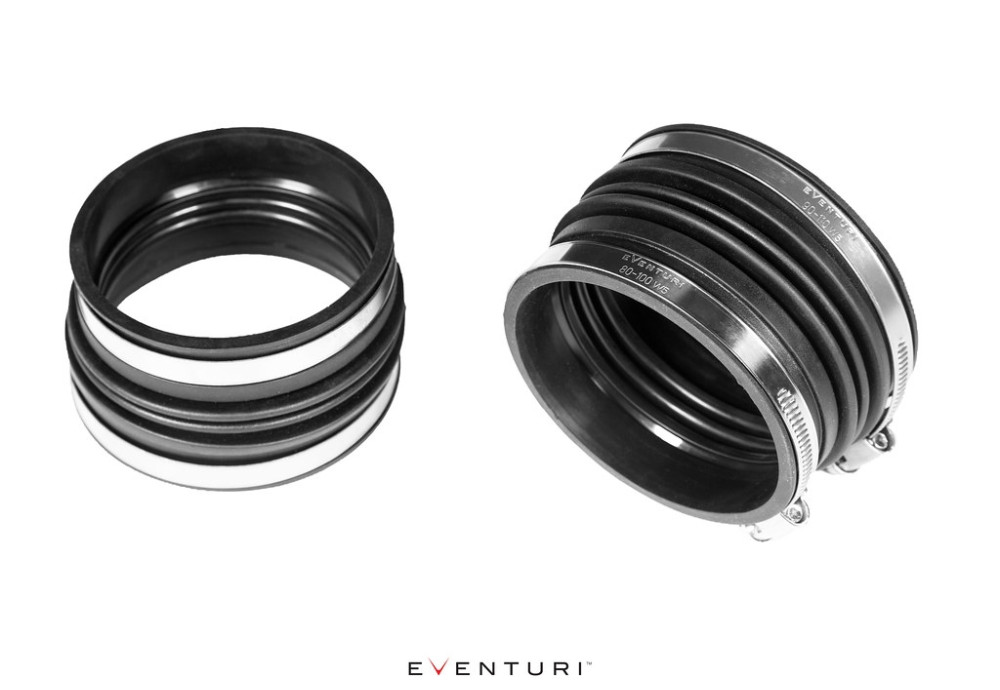

By taking the housings further in length towards the plenum, we had to replace the OEM flexible hose with our own version to maintain flexibility. Our EPDM couplers are internally stepped like the OEM versions to create a smooth path between the housings and the plenum.

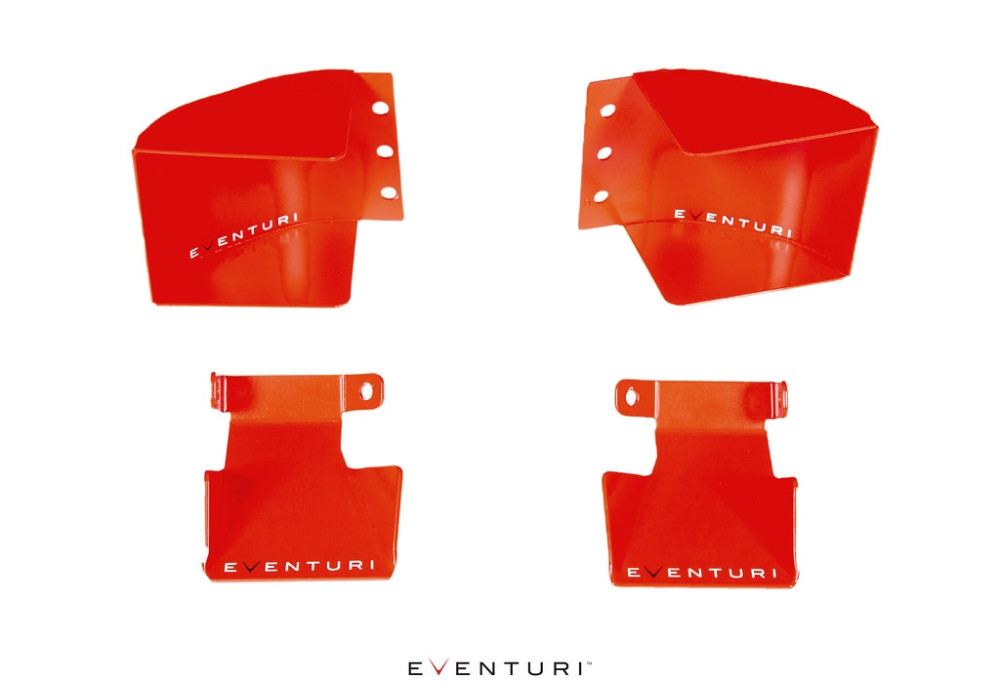

AIR SCOOPS
Laser cut from aluminium and then powder coated, there are 2 scoops which located behind the front nose grills and another 2 which locate in the lower brake ducts. The front scoops are curved to smoothly direct ambient air into the stock ducting which then displace heated air from the intake area. The 2 lower scoops direct ambient air directly into the mouths of the intakes.

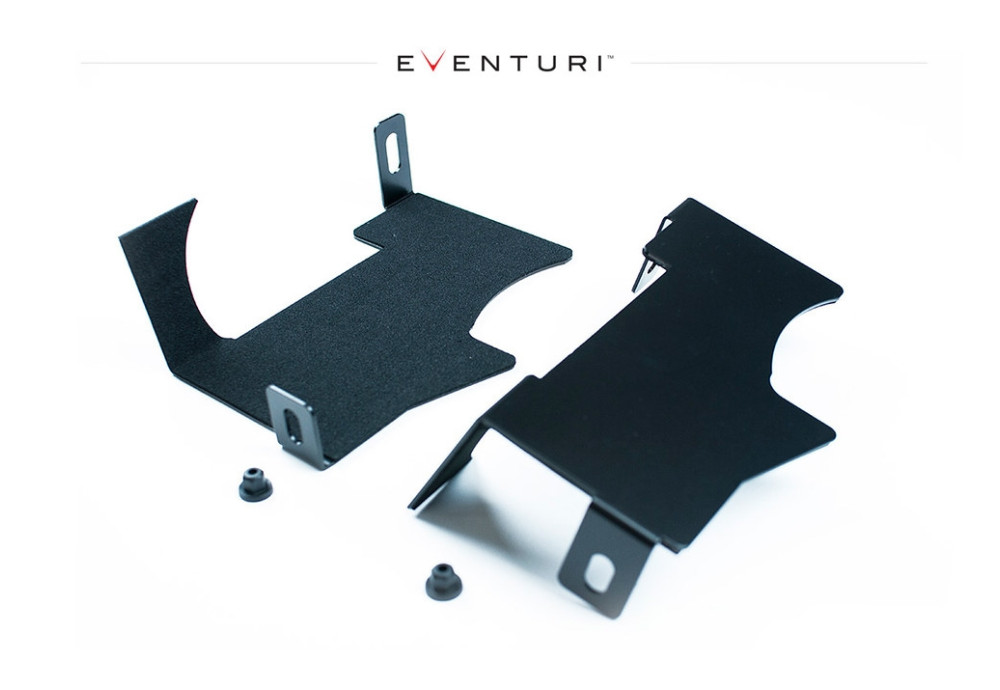

HEAT SHIELDS
There are 2 aluminium heat shields with neoprene lining. They locate on the engine side of each intake and effectively deflect hot air from the radiator - especially when the fan comes into operation.
Part number: EVE-E60V2-CF-INT
EVENTURI Carbon Air Intake System For BMW M5 E60 E61.
Performance Gain: 12-15hp, 12-18ft-lb
*Some images show our Carbon Plenum available separately.
Our updated M5 E60 E61 intake system retains the performance gains of our original system and benefits from the experience we have gained over the years to accomplish a more integrated design. By integrating the MAF tube into the carbon housing and replacing the OEM flexible hoses with our custom made shorter versions, the system now has a seamless aesthetic. This intake is designed to make a positive impact to the whole driving experience. By taking advantage of aerodynamic principles and using computational fluid dynamics to optimise the airflow, we have engineered an intake system which delivers on all fronts – sharpened throttle response, more torque and power, improving drive-ability and of course, an intoxicating V10 induction sound.
The Eventuri Difference
The S85 Eventuri system uses our Patent Pending Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.
COMPONENTS
The M5 E60 E61 Intake system contains a comprehensive number of high quality components including:
PATENTED FILTER HOUSINGS
The M5 E60 E61 V2 Filter Housings utilise our patented Venturi technology and at the same time incorporates the MAF tube section for a seamless flow path. The carbon housing shrouds the reverse mounted filters and smoothly shapes the airflow towards the MAF tubes where volume is gradually reduced. This smooth reduction in cross sectional area invokes the Venturi effect where the airflow accelerates whilst maintaining laminar conditions. It can be thought of as a large velocity stack - below is a diagram to show the comparison between our patented design and a regular intake system. Further details can be read in the Technology page.
BESPOKE CONE FILTER
The filter we chose for the M5 E60 E61 system allows for a balance between filtration area and overall filter housing volume. By using a shorter cone we were able to optimise the shape of the housing for better flow towards the MAF tubes while maintaining more than sufficient filtration area for the CFM demands. The filter medium is ISO tested to ensure that filtration is in line with OEM standards and is also dry. The filter is constructed with our signature flow cones to aid in the Venturi housing principle.
EPDM COUPLERS
By taking the housings further in length towards the plenum, we had to replace the OEM flexible hose with our own version to maintain flexibility. Our EPDM couplers are internally stepped like the OEM versions to create a smooth path between the housings and the plenum.
AIR SCOOPS
Laser cut from aluminium and then powder coated, there are 2 scoops which located behind the front nose grills and another 2 which locate in the lower brake ducts. The front scoops are curved to smoothly direct ambient air into the stock ducting which then displace heated air from the intake area. The 2 lower scoops direct ambient air directly into the mouths of the intakes.
HEAT SHIELDS
There are 2 aluminium heat shields with neoprene lining. They locate on the engine side of each intake and effectively deflect hot air from the radiator - especially when the fan comes into operation.
Part number: EVE-E60V2-CF-INT
EVENTURI Carbon Air Intake System For BMW M5 E60 E61
| Tuning Equipment | |
| Brand | EVENTURI |
| Car |
BMW M5 IV (E60/E61) (2004-2010) 4,4L (S85B50) |
| Type of equipment | Air intake systems |
Eventuri was founded by a team of engineers and enthusiasts with a background in Aeronautics and tuning – all sharing a passion for cars and performance. After owning various intakes over many years for our own cars and being disappointed with the gains which seldom lived up to their claims – we decided to take things into our own hands and rewrite the book. Eventuri set a new benchmark in intake design and technology, above all – to engineer systems which provide real gains and then to publish genuine figures.
Eventuri intake systems are extensively developed using cutting edge design, testing and prototyping methods. With a focus on performance, each design undergoes CFD analysis and is then validated at the prototype stage through volumetric airflow, intake temperature and extensive dynamometer testing. Eventuri strive to publish all the development information to illustrate the depths we go to in bringing an intake from concept to reality.
Only the best materials are selected for each component – even down to the choice of fasteners and fixings in order to ensure that the quality of the end product is second to none.
