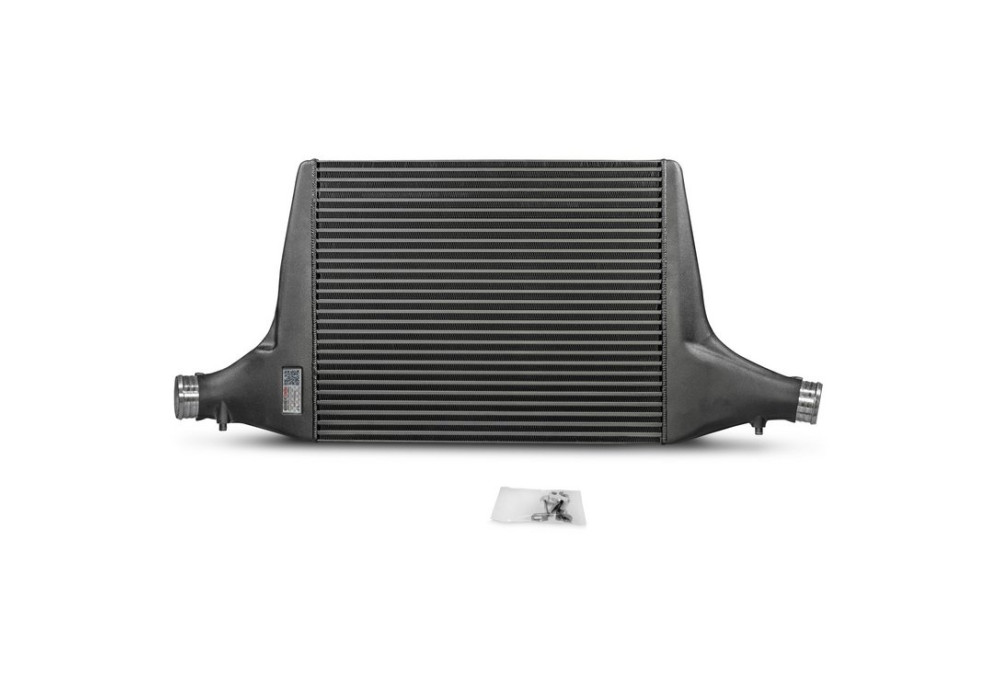

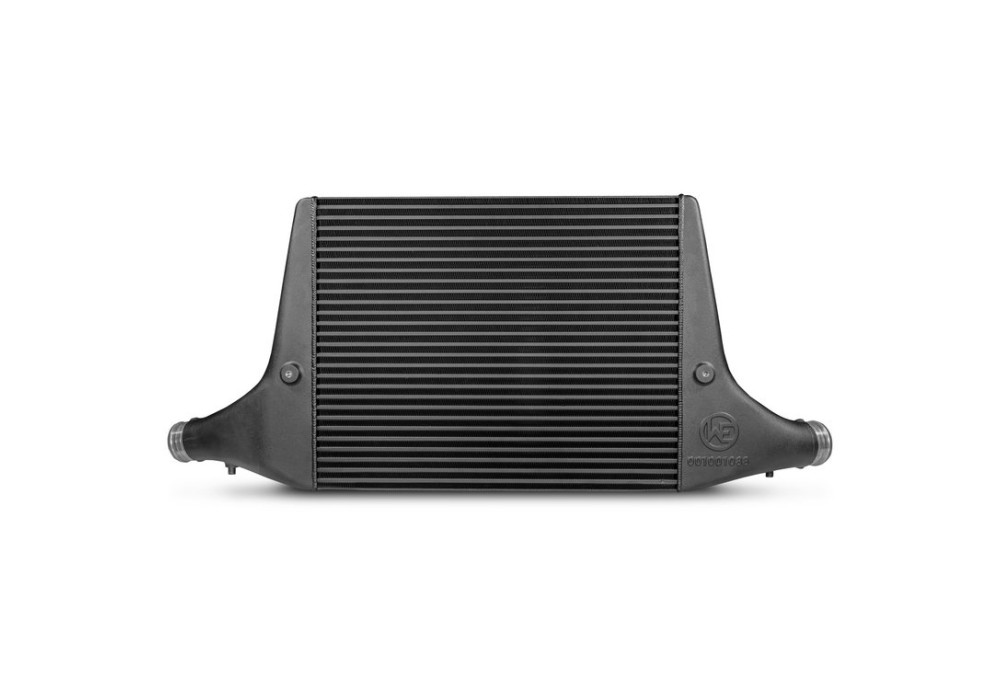

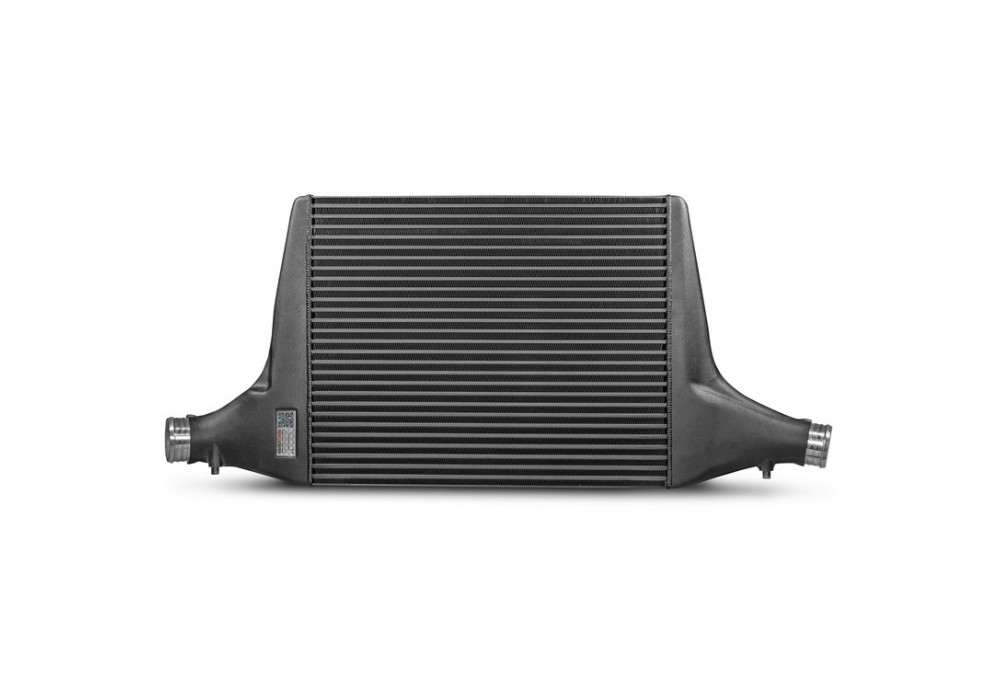

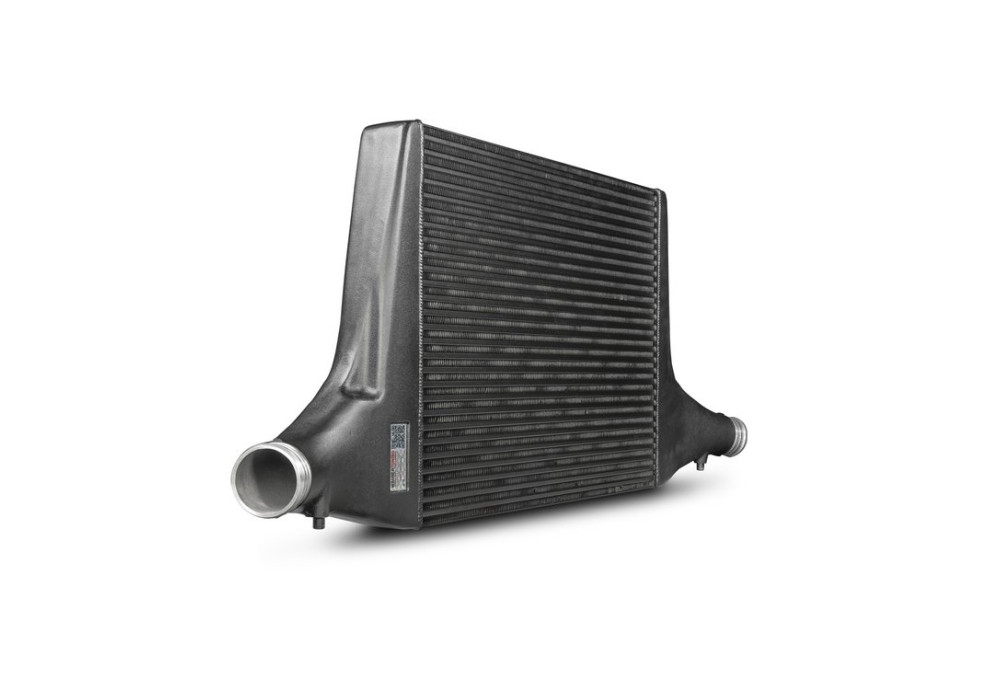

Competition Intercooler kit + Pipes For Audi SQ5 FY 3.0TFSI USA Competition Intercooler kit + Pipes For Audi SQ5 FY 3.0TFSI USA

Experience ultimate performance enhancement with our Competition High Performance Intercooler!

Your vehicle deserves nothing but the best, and our Competition High Performance Intercooler is designed to deliver just that. With its impressive specifications and high-quality materials, this intercooler is the perfect addition to your vehicle.

Wagner Tuning Competition high performance intercooler sets a new standard in cooling performance. With net dimensions of 550 mm x 445 mm x 70 mm (equivalent to 17,130 cc), it offers a 134% larger flow area and 105% larger charge air volume compared to the stock intercooler. This means your engine gets more cooled air, resulting in a noticeable increase in power.

This Competition high performance intercooler core is made of high quality Tube Fin material with internal turbulators. This combination allows for maximum heat transfer and airflow to maximize cooling performance.

Despite its size, our intercooler is surprisingly lightweight, weighing only 9.5 kg. This minimizes stress on your vehicle and helps improve overall performance.

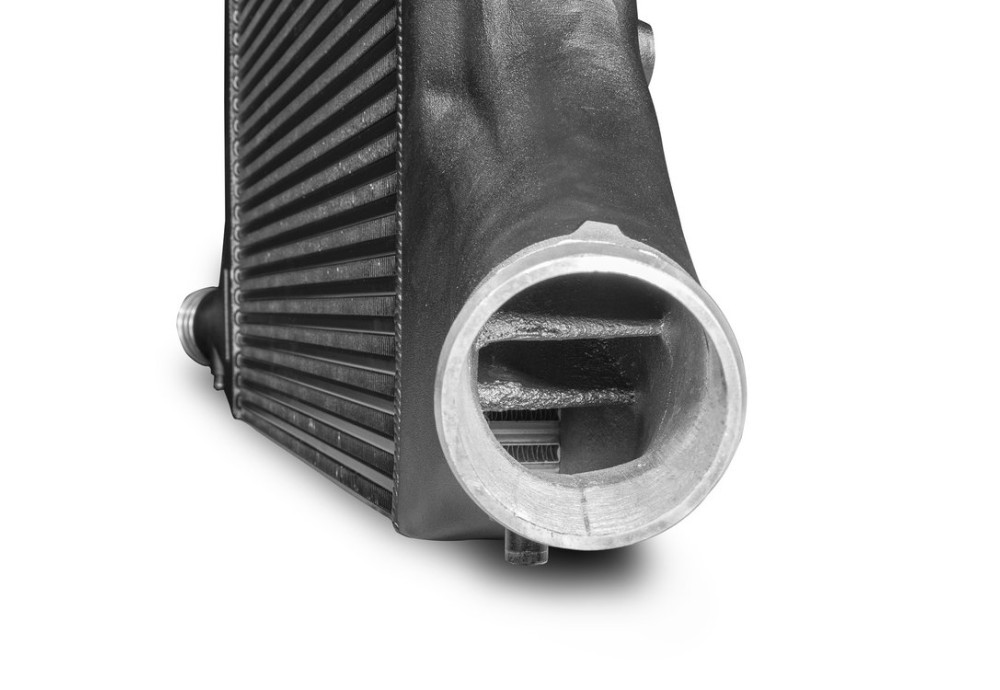

The cast aluminum end boxes of our intercooler were developed in the CAD system and optimized using flow analyses in the CFD system. The result is excellent cooling properties with minimal back pressure. All our charge air coolers are equipped with an anti-corrosion coating that also has excellent heat conduction properties. This ensures permanent and optimal cooling, which translates into an impressive increase in performance. Our kit is completely ready to install and allows for easy replacement with the stock intercooler. No complex conversion required - simply plug and play. Tested up to 6 bar and pressure stable.

Our products are subject to strict qualitative monitoring and are also suitable for racing. Increase the performance of your vehicle with our Competition high performance intercooler and feel the difference on every ride.

Competition Intercooler Kit for Audi SQ5 FY 3,0TSFI USA

Audi SQ5 FY 3,0TFSI 260KW/354PS (2016+)

Core Dimensions original intercooler:

720mm x 145mm x 80mm

V=8,35 liter

A=1044 cm²

Core dimensions Wagner Tuning intercooler :

550mm x 445mm x 70mm

V=17,13 Liter

A=2447 cm²

Kit number:  200001121USA.PIPE

Kit comes with:

1 intercooler (coated black)

1 Ø65mm Aluminium air pipe

1 mounting material

1 installation instruction

Competition Intercooler kit + Pipes For Audi SQ5 FY 3.0TFSI USA, Your engine gets more cooled air, resulting in a noticeable increase in power.
