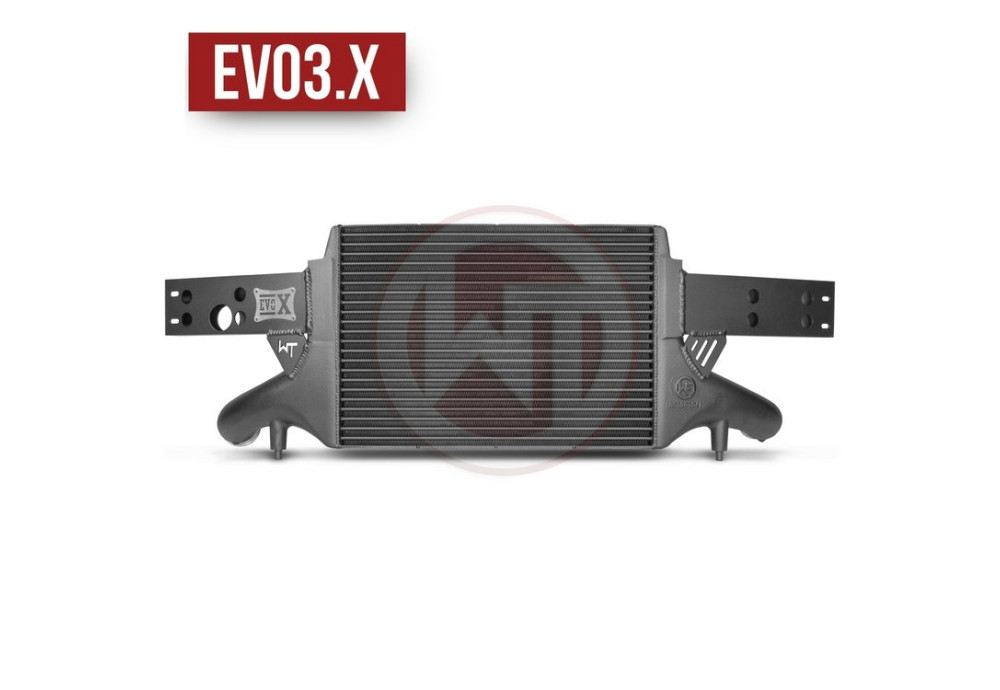

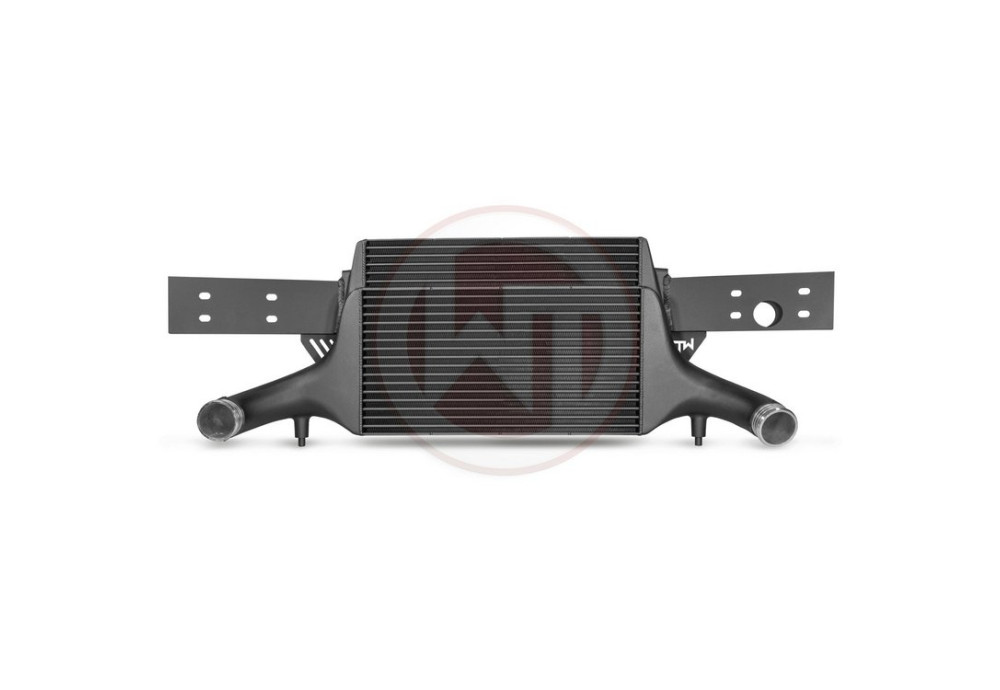

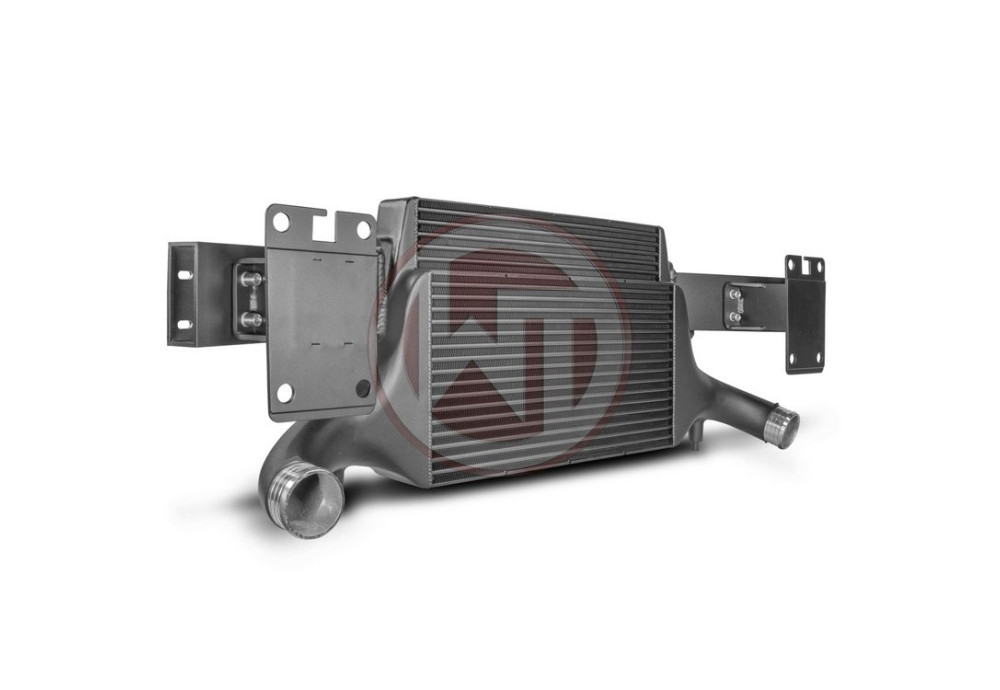

Competition Intercooler Kit EVO3.X For Audi TTRS 8S 2.5TFSI Competition Intercooler Kit EVO3.X For Audi TTRS 8S 2.5TFSI

Competition Intercooler Kit EVO3 for Audi TTRS 8S now available with TÜV certificate and two different intercooler core options.

The new core option EVO3.X was developed in cooperation with a renowned German Audi tuner and is suitable for higher performance applications 600PS+. The size of the intercooler remains unchanged from the original version. Only the internal core design has been further optimized for the high power applications and guarantees optimal air flow and excellent cooling performance. For all power applications below the 600PS we recommend to use the standard version.

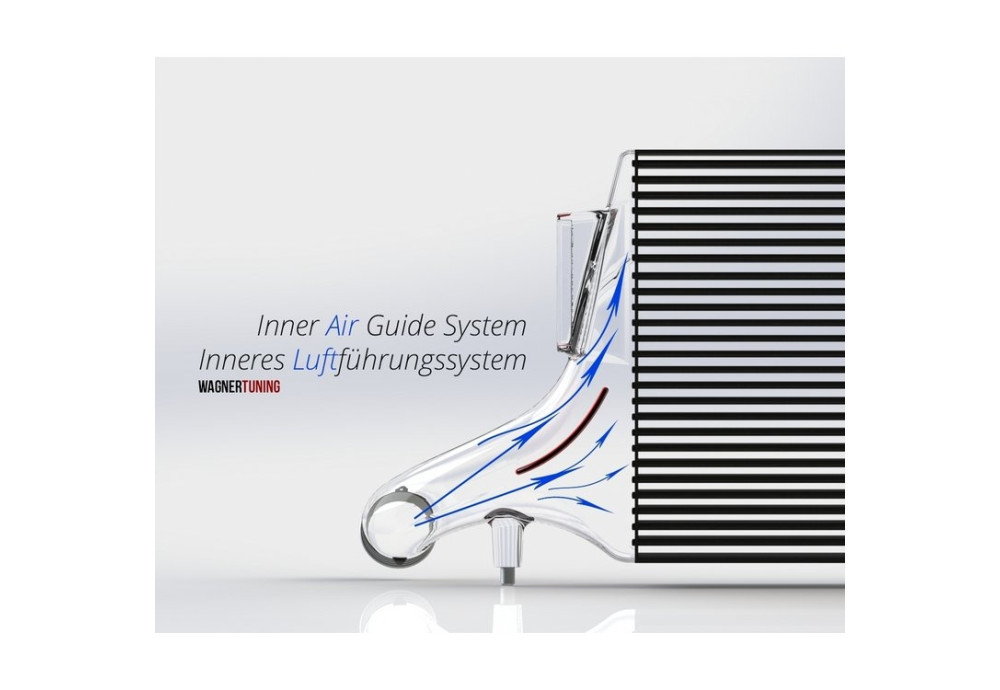

The high performance intercooler has the following core dimension (515mm x 367mm x 95mm = 16.500cm³) and thus offers a 84% larger cooling surface and 101% more charge air volume compared to the original intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This Audi TTRS 8S intercooler uses our award winning WAGNER TUNING Competition Intercooler Core, which is made specifically for this application. Constructed of the highest quality Tube and Fin intercooler cores with inside turbulators combined with cast aluminum endtanks optimized by CFD for best possible internal airflow. With the help of additional air guides, inside inlet, a uniform filling of the intercooler is provided. The result is excellent cooling properties with minimum pressure drop. So this kit is just the right thing for racing. The intercooler and the original crossmember form a stable unit and weighs only 11.7 kg. It is mounted to the original mounting points and is easy to perform (simple adjustments necessasy - check installation instruction). Optimum cooling of the charged air with a clear increase in performance! 68mm In and Outlets.

Audi OEM intercooler:

cooling surface 1024cm²(158,7Inch²)

charge-air-volume 8,2L (500,4Inch³)

Wagner Tuning EVO3.X Competition:

cooling surface 1890cm² (293Inch²)

charge-air-volume 16,5L (1006,9Inch³)

Kit number: 200001136.X

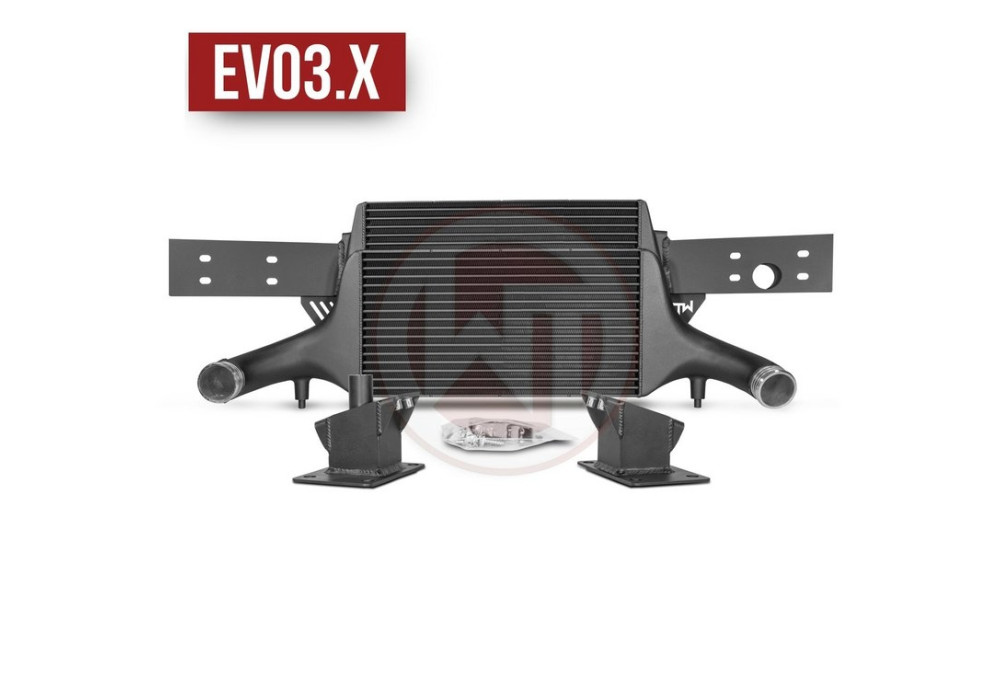

Kit comes with:

1 intercooler including crossmember

1 mounting material

1 installation instruction

1 TÜV Certification (*only for Non-OPF cars)

Competition Intercooler Kit EVO3.X For Audi TTRS 8S 2.5TFSI, Optimum cooling of the charged air with a clear increase in performance.
