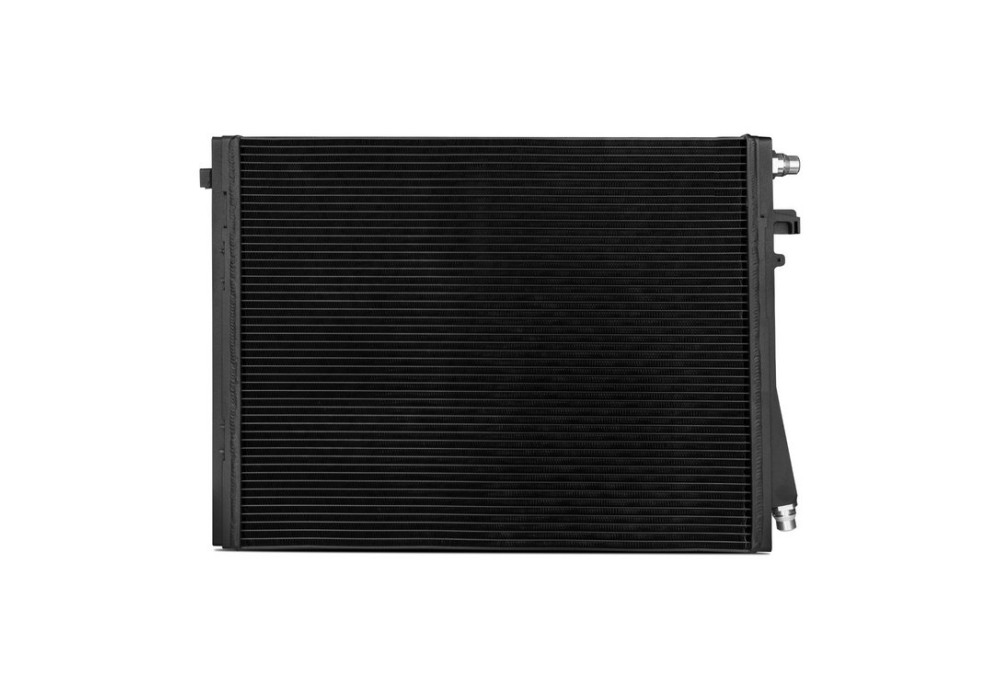

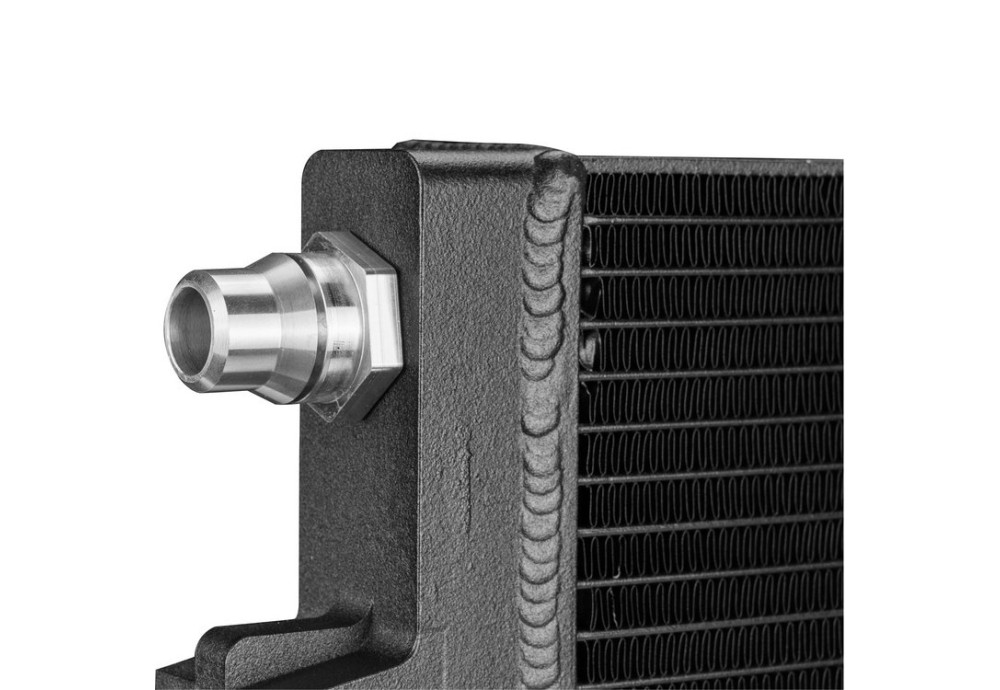

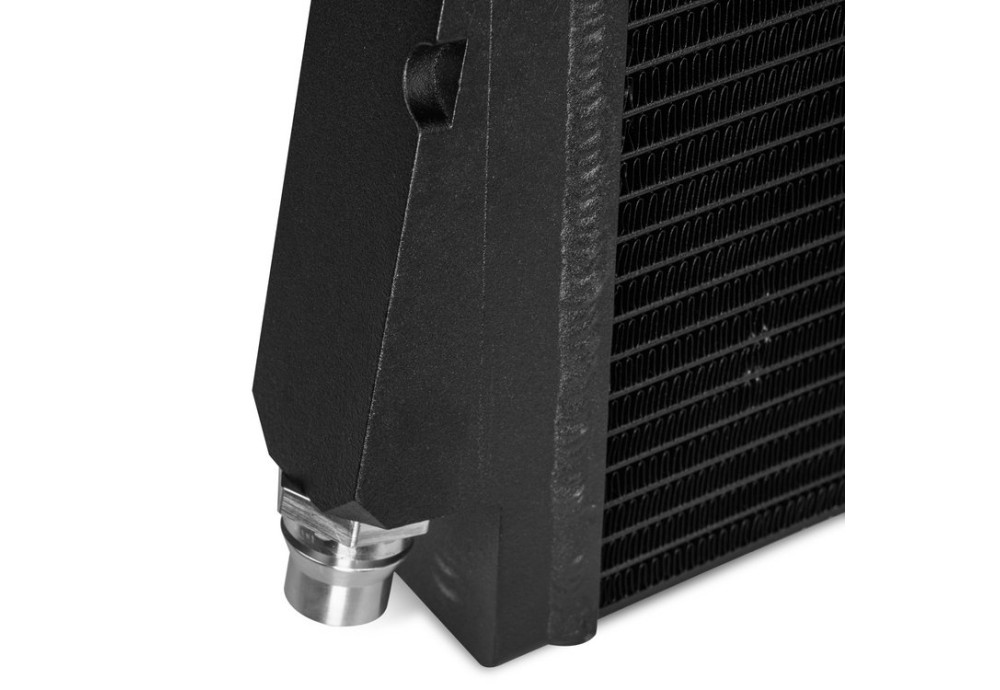

Wagner Tuning Competition Radiator Kit for BMW G80/G81/G82 M3/M4.
Fits plug and play to following models:
BMW G87 M2 338kW/460 PS from 2023+
BMW G80/81 M3 (Competition) 353-375KW/480-510PS from 2021+
BMW G82 M4 (Competition/CSL) 353-405KW/480-550PS from 2021+
The 3.0L R6 biturbo engine of BMW M2/M3/M4 models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit. A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the WAGNER TUNING upgrade water cooler comes into play.
The new developed competition racing core of the WAGNER TUNING high performance water coolers increase the radiator volume of the OEM water coolers by a total of 60 %. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange. The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).
Dimensions BMW OEM radiator:
505 mm x 605 mm x 30 mm
V = 9,16 Liter
A = 3055 cm²
Dimensions Wagner Tuning radiator:
505 mm x 605 mm x 48 mm
V = 14,67 Liter
A = 3055 cm²
Kit number: 400001021
Wagner Tuning Competition Radiator Kit for BMW G80/G81/G82 M3/M4.
Fits plug and play to following models:
BMW G87 M2 338kW/460 PS from 2023+
BMW G80/81 M3 (Competition) 353-375KW/480-510PS from 2021+
BMW G82 M4 (Competition/CSL) 353-405KW/480-550PS from 2021+
The 3.0L R6 biturbo engine of BMW M2/M3/M4 models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit. A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the WAGNER TUNING upgrade water cooler comes into play.
The new developed competition racing core of the WAGNER TUNING high performance water coolers increase the radiator volume of the OEM water coolers by a total of 60 %. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange. The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (an installation instruction is included as well).
Dimensions BMW OEM radiator:
505 mm x 605 mm x 30 mm
V = 9,16 Liter
A = 3055 cm²
Dimensions Wagner Tuning radiator:
505 mm x 605 mm x 48 mm
V = 14,67 Liter
A = 3055 cm²
Kit number: 400001021
Radiator Kit S58 Engine For BMW M2 G87, The new developed competition racing core of the WAGNER TUNING high performance water coolers increase the radiator volume of the OEM water coolers by a total of 60 %.
| Tuning Equipment | |
| Brand | Wagner |
| Car | |
